Stigmata CC Force/X0 Transmission 1x Gravel Bike
Add Ons
Join Summit Club+ and earn!
Santa Cruz Stigmata Force 1x AXS RSV runs X0 Eagle AXS T-Type Transmission
Reserve builds this Stigmata's wheelset around a rim layup tuned for gravel loads rather than a shared road mold, and paired with DT Swiss 350 hubs and a 24-spoke count, the wheelset comes in light enough to change how the bike accelerates out of a corner. The same cyclocross-derived geometry carries over from the rest of the line, so the weight drops without touching the handling that makes the Stigmata quick under a rider who already knows how to use it.
What Our Gearhead® Experts Are Saying:
"The X0 Eagle AXS T-Type derailleur mounts straight to the UDH instead of hanging off a replaceable hanger, so there's no alignment to chase after a hard case-out on the rear mech. Pairing Force AXS shifting with that rear derailleur gets a true mullet groupset without giving up hydraulic hood ergonomics."
Heads up! We do our best to keep bike specs and images current, but occasional component changes can happen without warning, and sometimes the photos might not show the exact build you'll receive. If you want to double-check the details, our Gearhead® Experts are always here to help.
Details
- A race-ready gravel bike built for fast starts, loose corners, and long days in the saddle

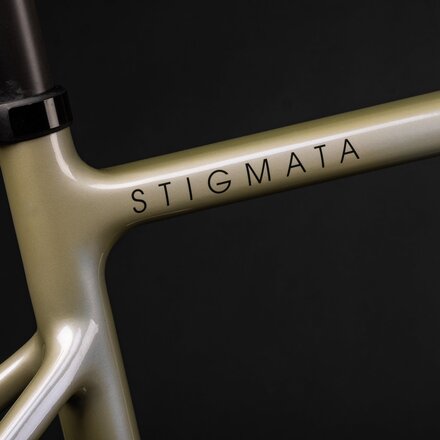

- Carbon CC frame — race-weight construction that still holds up to daily miles
- Cyclocross-bred geometry — quick, precise handling when the trail gets technical
- SRAM Force AXS with X0 Eagle Transmission — wireless shifting and a wide 10-52t range
- Reserve carbon wheels — lighter rotating weight for faster acceleration
- Room for 700x50mm tires — size up without hunting for frame clearance

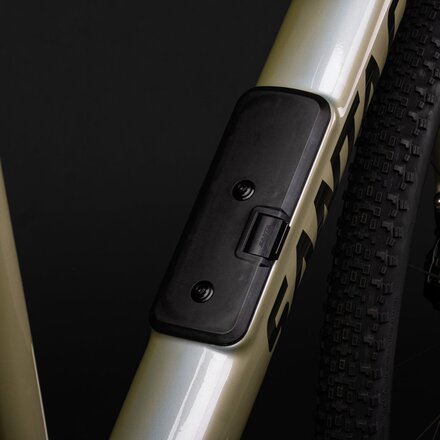

- Glovebox in-frame storage — pack tools and a tube without adding a bag
- Low-profile fender mounts — stay ready for wet-weather rides
- Item #SNZK1RZ
- Frame Material
- Carbon CC

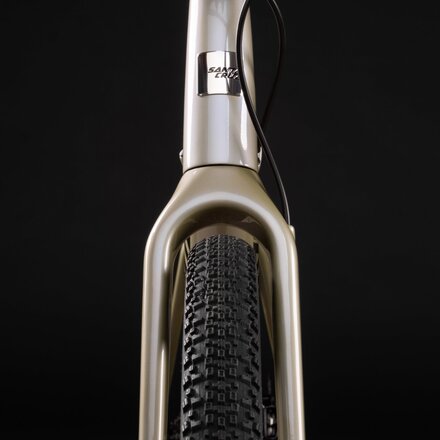

- Fork
- Carbon CC, 430mm axle to crown, 45mm offset
- Headset
- Cane Creek 50 IS Integrated Headset
- Shifters
- SRAM Force AXS
- Rear Derailleur
- SRAM X0 Eagle AXS T-Type, 12spd
- Crankset
- SRAM Force XPLR
- Chainring Sizes
- 42t
- Crank Arm Length
- [X-Small, Small] 165mm, [Medium, Large] 170mm, [X-Large, XX-Large] 172.5mm
- Bottom Bracket
- SRAM DUB, 68mm threaded
- Cassette
- SRAM X0 1295 Eagle T-Type
- Cassette Range
- 10-52t
- Chain
- SRAM X0 Eagle T-Type, Flattop, 12spd
- Brakeset
- SRAM Force AXS
- Brake Type
- hydraulic disc, centerlock
- Rotors
- SRAM Centerline, Centerlock, 160mm
- Handlebar
- Zipp Service Course SL-70 XPLR Bar
- Handlebar Width
- [X-Small, Small] 42cm, [Medium, Large] 44cm, [X-Large, XX-Large] 46cm
- Bar Tape
- Velo Bar Tape
- Stem
- Zipp Service Course Stem
- Stem Length
- 70mm
- Saddle
- WTB Silverado Medium Fusion, CroMo SL
- Seatpost
- Easton EC70, 27.2mm, zero offset, 350mm
- Wheelset
- Reserve 25|GR Carbon, 24h
- Hubs
- DT Swiss 350, Centerlock, XDR freehub
- Front Axle
- 12 x 100mm
- Rear Axle
- 12 x 142mm
- Tire Clearance
- 50mm (1x), 45mm (2x)
- Tires
- Maxxis Rambler, Hyper-X, EXO
- Tire Size
- 700x45c
- Pedals
- Not included
- Extras
- Glovebox in-frame storage, low-profile fender mounts, 3 bottle mounts
- Claimed Weight
- 19.14lb (8.68kg)
- Activity
- Gravel
- Manufacturer Warranty
- [frame] lifetime
