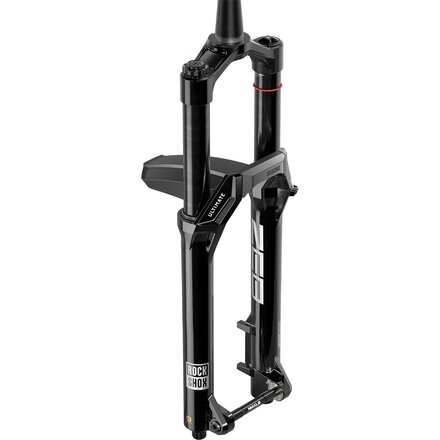

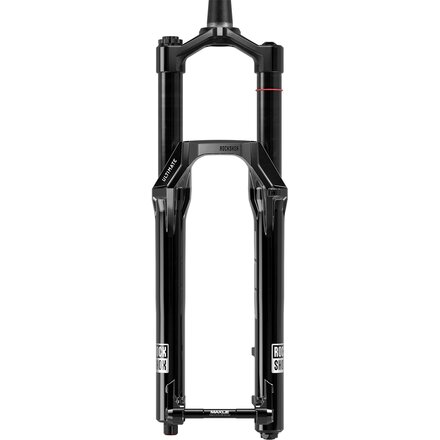

ZEB B1 Ultimate Charger 3.2 RC2 29in Boost Fork
Size:
Quantity
Join Summit Club+ and
ZEB Ultimate fork with numbered compression adjuster and adjustable bottom out
What Our Gearhead® Experts Are Saying:
"Most forks I've ridden start to feel different after a few months of hard use. The ZEB Ultimate didn't. The Charger 3.2 rebound tune also plays well with the LinearXL spring. I didn't have to fight the damper to get the fork to track."
The LinearXL air spring replaces the previous DebonAir design with a coil-like progression: open and supple off the top to track small hits, ramping into the mid-stroke for support under load, and backed by externally adjustable bottom out so riders can tune end-stroke control without pulling the lowers. The result is a fork that handles both high-speed chatter and square-edge impacts without requiring a compromise between initial sensitivity and bottoming resistance. Available with 1.5-inch or 1.8-inch tapered steerer and in 150, 160, 170, and 180-millimeter travel options to cover the full range of enduro and freeride builds.
Building around the ZEB Ultimate and want help dialing in the right spec? Our Gearhead® Experts know this frame inside out. Reach out, and we'll help you put together a build that matches how you ride.
Details
- Enduro and freeride fork for steep, technical trails and big mountain terrain
- LinearXL air spring is supple off the top, supported through the stroke, with adjustable bottom out for end-stroke control
- Charger 3.2 RC2 damper with HSC/LSC adjustment and numbered compression dial for fast, repeatable setup
- ButterWagonTech continuous bushing lubrication keeps performance consistent across the full service interval
- ButterCups reduces high-frequency trail vibration to cut arm and hand fatigue on long descents
- 38-millimeter aluminum upper tubes provide stiffness for aggressive riding without added weight
- Integrated short fender mount included
- 15 x 110-millimeter Boost axle with 220-millimeter maximum rotor compatibility
- Item #RSXB0DI
- Travel
- 150mm, 160mm, 170mm, 180mm
- Stanchion Material
- Aluminum
- Wheel Size
- 29in
- Steer Tube Diameter
- 1.5in tapered
- Stanchion Diameter
- 38mm
- Rake
- 44mm
- Spring Type
- LinearXL air with ButterCups
- Damper
- Charger 3.2 RC2 with ButterCups
- Adjustability
- High-speed and low-speed compression, rebound, adjustable bottom out
- Axle
- 15 x 110mm Boost Maxle Stealth
- Brake Compatibility
- post mount disc
- Rotor Compatibility
- 200mm - 220mm
- Includes
- ZEB Integrated Fender
- Claimed Weight
- 5lb 10oz (2550g)
- Activity
- Enduro, Trail, Freeride
