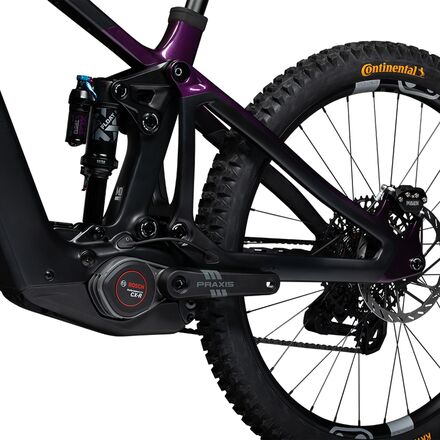

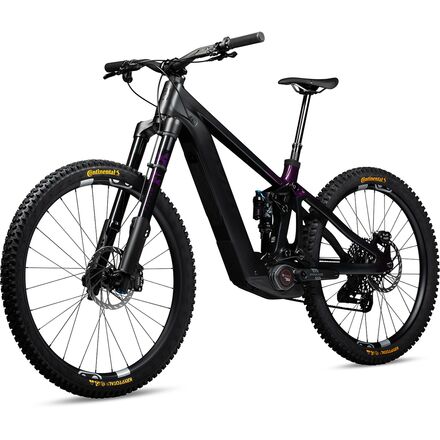

Shuttle LT V3 Pro X0 Transmission Neo EXTD e-Bike
Quantity
Join Summit Club+ and

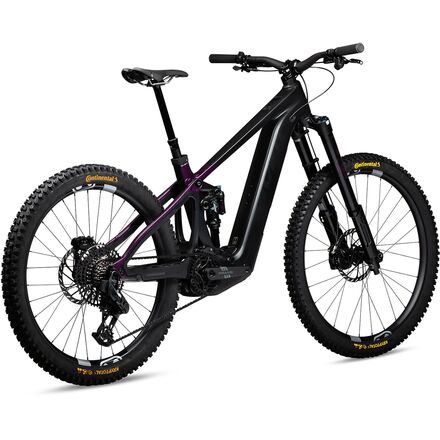

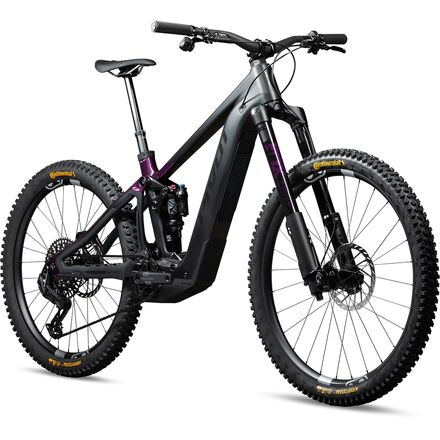

Extended-range coil-sprung performance defines the Shuttle LT V3 Pro X0 Transmission Neo EXTD
What Our Gearhead® Experts Are Saying:
"The combination of the Neo coil shock and PowerMore extender makes this Shuttle LT incredibly capable. It stays glued to the ground on descents and has the battery capacity to keep lapping without compromise. This build is clearly aimed at riders who prioritize downhill performance and long days."

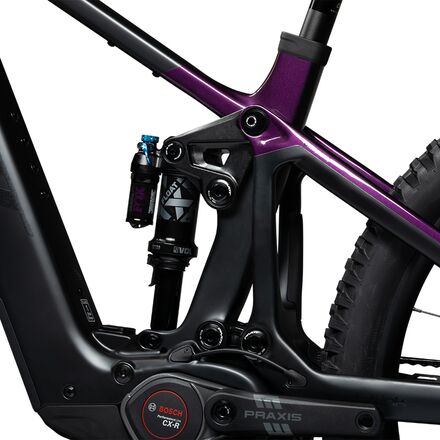

The Shuttle LT V3 Pro X0 Transmission Neo EXTD is engineered for riders who demand uncompromising downhill performance with the freedom to ride farther. Pivot Cycles pairs a carbon frame and long-travel dw-link suspension with a FOX Neo coil rear shock to deliver consistent traction and control through repeated impacts and sustained descents.

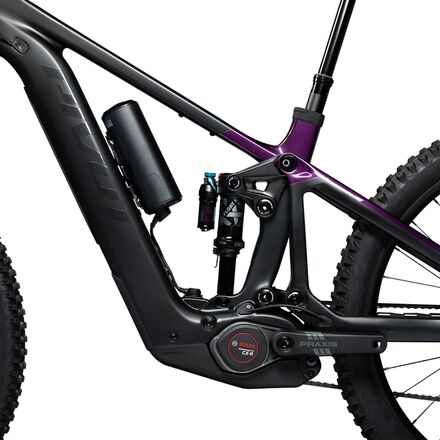

Powered by the Bosch Performance Line CX Race Edition drive unit, the Shuttle LT delivers immediate, responsive assistance for steep climbs and technical terrain. An 800Wh internal battery combined with the PowerMore 250Wh range extender significantly increases total capacity, making extended enduro days and big elevation missions achievable. With gravity-focused suspension, race-ready components, and expanded range, the Shuttle LT V3 Pro X0 Transmission Neo EXTD is built for riders who refuse to stop early.
Heads up - We do our best to keep bike specs and images current, but occasional component changes can happen without warning-and sometimes the photos might not show the exact build you'll receive. If you want to double-check the details, our Gearheads are always here to help.
Details
- Built for aggressive e-bike trail and enduro riding
- FOX Neo coil rear shock maximizes traction and downhill control
- 170mm front travel for confidence at speed
- Bosch Performance Line CX Race Edition motor delivers race-ready assistance
- 800Wh battery paired with 250Wh PowerMore range extender

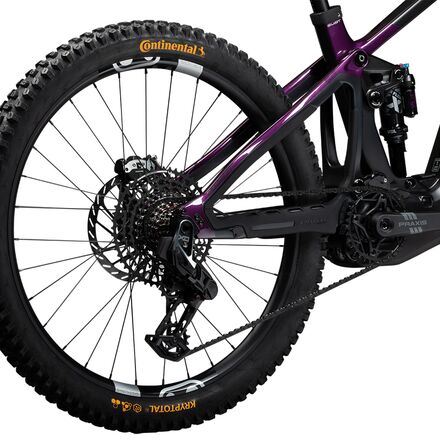

- X0 Eagle Transmission drivetrain shifts precisely under load
- Mixed-wheel setup balances stability and agility
- Item #PIV1X59
- Frame Material
- carbon
- Suspension
- dw-link
- Rear Shock
- FOX Neo Coil
- Rear Travel
- 165mm

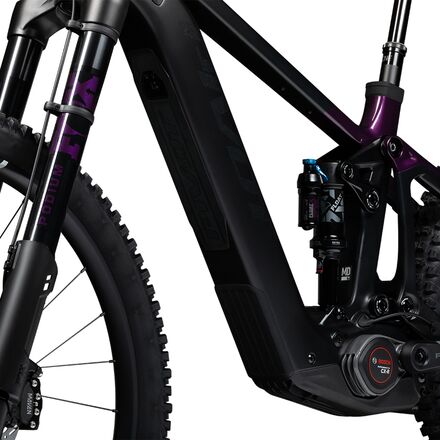

- Fork
- Fox Performance Elite Podium 29in, GRIP X2, 44mm offset
- Front Travel
- 170mm
- Headset
- Pivot Precision Sealed Cartridge
- Shifters
- SRAM AXS Pod Controller
- Rear Derailleur
- SRAM X0 Eagle Transmission (12-speed)

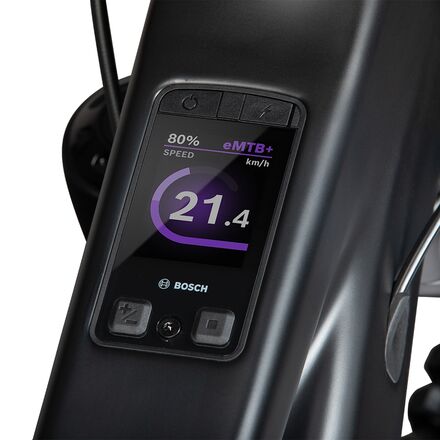

- Computer
- Bosch Kiox 400C
- Drive System
- Bosch Performance Line CX Race Edition
- Battery Type
- Bosch PowerTube 800Wh plus PowerMore 250Wh
- Battery Energy
- 1050Wh
- Max Range
- 1050Wh
- Max Speed
- Class 1
- ISCG Tabs
- yes
- Crankset
- Praxis Alloy eCranks E-MTB
- Chainring Sizes
- 34t
- Crank Arm Length
- 160mm
- Cassette
- SRAM GX 1275 Eagle Transmission
- Cassette Range
- 10–52t
- Chain
- SRAM X0 Eagle Flattop (12-speed)
- Brakeset
- SRAM Maven Silver 4-piston
- Brake Type
- hydraulic disc
- Rotors
- SRAM HS2 Centerlock (200mm)
- Handlebar
- Phoenix Team Carbon
- Handlebar Rise
- [small] 20mm, [medium – x-large] 35mm
- Handlebar Width
- 780mm
- Grips
- Phoenix Factory Lock-On
- Stem
- Phoenix Team Enduro V2
- Stem Length
- [small – large] 40mm, [x-large] 50mm
- Saddle
- Pivot Ride E-Bike

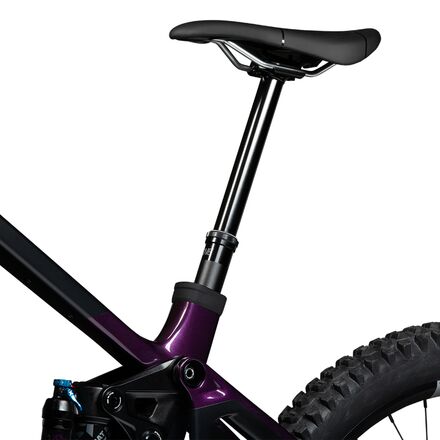

- Seatpost
- OneUp Dropper V3
- Wheelset
- Crank Brothers Synthesis DH
- Hubs
- Crank Brothers
- Front Axle
- 15 x 110mm
- Rear Axle
- 12 x 157mm
- Tires
- Continental Kryptotal Enduro casing
- Tire Size
- [front] 29in, [rear] 27.5in
- Pedals
- not included
- Activity
- enduro
- Manufacturer Warranty
- [frames, linkage bearings] lifetime (bike must be registered no later than 30 days after date of purchase), 3 years if not registered, [paint, coating, finish, decals] limited 1-year, [Phoenix-branded components] limited 5-year
