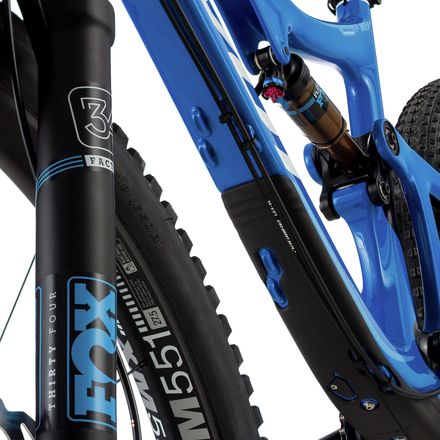

  • Pivot Mach 429 Trail 27.5+ X01 Eagle Complete Mountain Bike - 2017 Suspension

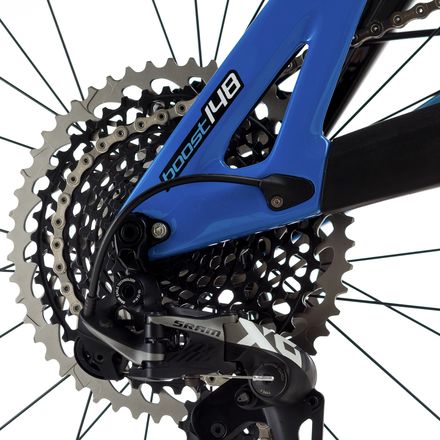

  • Pivot Mach 429 Trail 27.5+ X01 Eagle Complete Mountain Bike - 2017 Rear Drivetrain

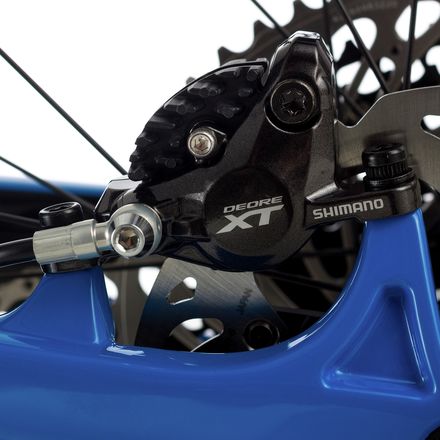

  • Pivot Mach 429 Trail 27.5+ X01 Eagle Complete Mountain Bike - 2017 Rear Brake

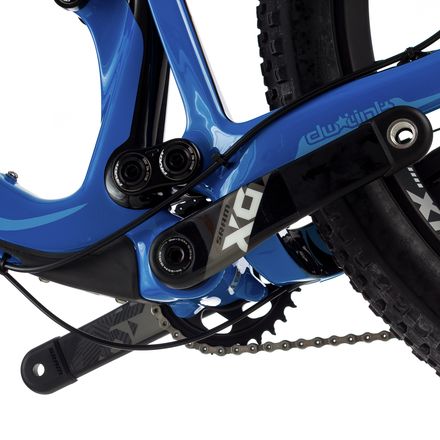

  • Pivot Mach 429 Trail 27.5+ X01 Eagle Complete Mountain Bike - 2017 Front Drivetrain
  • Pivot Mach 429 Trail 27.5+ X01 Eagle Complete Mountain Bike - 2017 3/4 Back

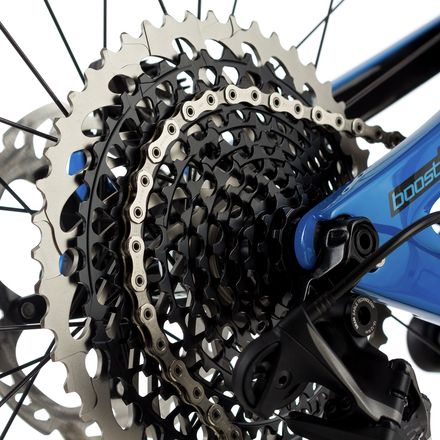

  • Pivot Mach 429 Trail 27.5+ X01 Eagle Complete Mountain Bike - 2017 Rear Derailleur/ Cassette

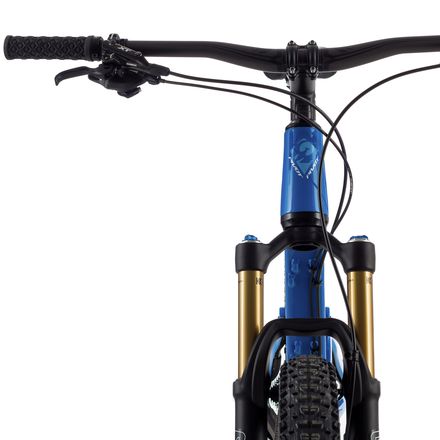

  • Pivot Mach 429 Trail 27.5+ X01 Eagle Complete Mountain Bike - 2017 Front

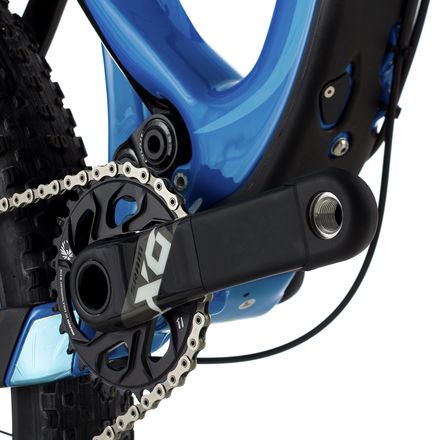

  • Pivot Mach 429 Trail 27.5+ X01 Eagle Complete Mountain Bike - 2017 Crank

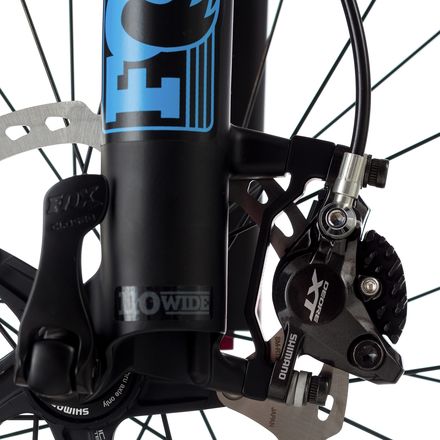

  • Pivot Mach 429 Trail 27.5+ X01 Eagle Complete Mountain Bike - 2017 Front Brake

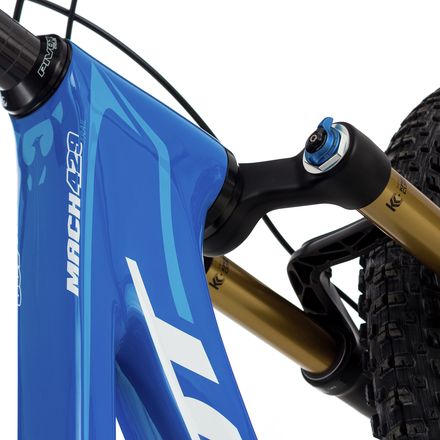

  • Pivot Mach 429 Trail 27.5+ X01 Eagle Complete Mountain Bike - 2017 Fork
  • Pivot Mach 429 Trail 27.5+ X01 Eagle Complete Mountain Bike - 2017 3/4 Back
  • OptionsPivot -
  • Detail Images - Suspension
  •  - Rear Drivetrain
  •  - Rear Brake
  •  - Front Drivetrain
  •  - 3/4 Back
  •  - Rear Derailleur/ Cassette
  •  - Front
  •  - Crank
  •  - Front Brake
  •  - Fork
  •  - 3/4 Back

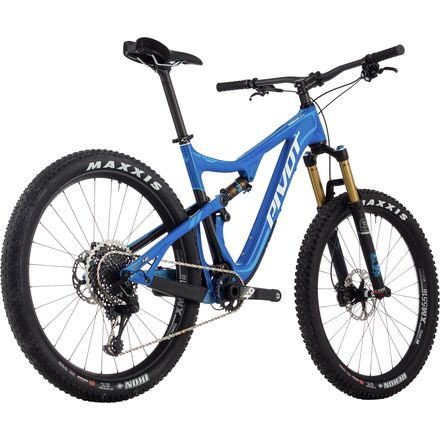

PivotMach 429 Trail 27.5+ X01 Eagle Complete Mountain Bike - 2017

Temporarily Out Of Stock

Item # PIV003M

Don't get too bummed. This item is on the way and will be available for purchase as soon as it rolls into the warehouse.

View Similar Products
Description

Trail adventure awaits.

The 2017 Pivot Mach 429 Trail 27.5+ X01 Eagle Complete Mountain Bike pairs all the versatility we loved in the 2016 version and adds 27.5+ wheels for an even smoother, more confident ride. Kitted out with SRAM's X01 Eagle one-by 12-speed drivetrain, Shimano XT hydraulic brakes, FOX's trail suspension kit, and smooth rolling DT Swiss XM 551 hoops, this rig straddles the worlds of XC and enduro to bring big hit durability and blazing speed to any trail.

The 429 Trail's DW-Link suspension owes its capabilities to a handful of queues taken from the Mach 6 and Phoenix, teasing a virtual depth out of the 4.5in of travel that feels closer to a proper 5in trail bike. The canny cyclist may spot elements of Pivot's DH clevis and enduro lower linkage in this model, but the new upper linkage translates those big-hit designs to the traction-focused language of a trail bike. By bringing the 429SL's small-bump compliance and race-worthy trail-contact into conversation with the Mach 6's terrain-erasing capabilities, the 429 Trail defines the crossroads where XC speed meets fearless enduro aggression.

The frame itself begins life with Pivot's hollow-core internal molding process for uniform, controlled wall thicknesses and material distribution. This process virtually eliminates inconsistencies and resin pooling, increasing structural integrity while targeting areas for weight loss. The frame rises from the mold with a 67.5-degree head tube angle and relatively stubby chainstays, making it slack enough to challenge lines across rock gardens but nimble enough to pick its way through enduro-grade terrain—all while sticking climbs and roosting berms in the manner that made us fall in love with its immediate predecessor, the 429SL.

The wide PF92 bottom bracket anchors the stiff Boost axles, accommodating wider pivot placement for longer life in the suspension's bearings and a stiffer rear triangle. We suspect that the PF92/Boost 148 collaboration is also responsible for the room to slam the rear wheel up and shorten the chainstays, making for even more power-transferring efficiency and the nimbleness described above. The externally routed cables make for easy maintenance, which we like, and also lower the bar for entry by reducing the manufacturing cost, which we like even more.

  • A 27.5+ trail bike with versatile capabilities
  • 4.5in of responsive DW-Link suspension
  • Geometry sits on the slack side of moderate for bigger lines
  • Pivot's carbon construction targets weight and stiffness
  • Boost axles further increase stiffness for a snappy ride
  • One-by 12-speed drivetrain provides wide gear range
Tech SpecsSize
Tech Specs
Frame Material
carbon fiber
Suspension
DW-Link
Rear Shock
Fox Float DPS Kashima
Rear Travel
116mm
Fork
Fox 34 Factory Kashima
Front Travel
130mm
Headset
Pivot Precision Sealed Bearing
Shifters
SRAM X01 Eagle 12-speed
Front Derailleur
n/a
Rear Derailleur
SRAM X01 Eagle 12-speed
ISCG Tabs
yes, ISCG 05
Crankset
30t SRAM X01 Eagle
Bottom Bracket
PF92
Cassette
10 - 50t SRAM X01 Eagle 12-speed
Brakeset
Shimano XT M8000
Brake Type
hydraulic disc
Handlebar
Phoenix Carbon Riser
Handlebar Width
740mm
Grips
Phoenix lock-on
Stem
Phoenix Team
Saddle
Pivot WTB Vigo Race
Seatpost
Phoenix Race Carbon
Seatpost Diameter
30.9mm
Seat Collar
34.9mm
Wheelset
DT Swiss XM 551
Hubs
DT Swiss 350
Front Axle
15 x 110mm Boost thru-axle
Rear Axle
12 x 148mm Boost thru-axle
Tires
[front] Maxxis Rekon, [rear] Maxxis Ikon
Tire Size
[front] 27.5 x 2.8in, [rear] 27.5 x 2.8in
Recommended Use
trail
Manufacturer Warranty
3 years on frame
Size

Pivot

Mach 429 Trail


Seat Tube

Effective Top Tube

Stack

Reach

Stand Over

Head Tube

Head Tube Angle

Seat Tube Angle

Bottom Bracket Height

Bottom Bracket Drop

Chainstay

Wheelbase
S 16in 22.85in 23.91in 15.1in 28.54in 4in 67.5o 72.8o 13.19in   17.45in 43.7in
M 17.5in 23.9in 23.93in 16.11in 28.98in 4in 67.5o 72.8o 13.19in   17.45in 44.69in
L 19in 24.75in 24.59in 16.66in 29.29in 4.7in 67.5o 72.8o 13.19in   17.45in 45.47in
XL 20.5in 25.6in 25.71in 17.14in 30.04in 5.9in 67.5o 72.8o 13.19in   17.45in 46.46in
