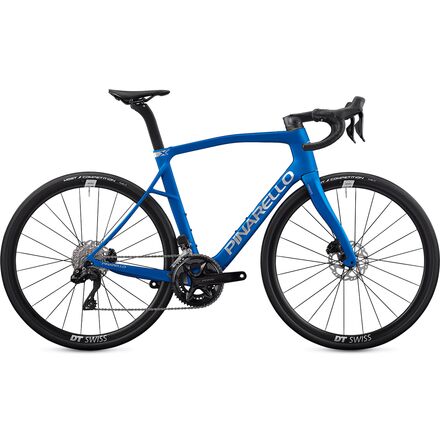

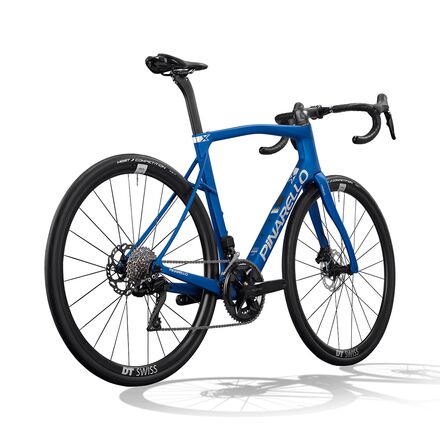

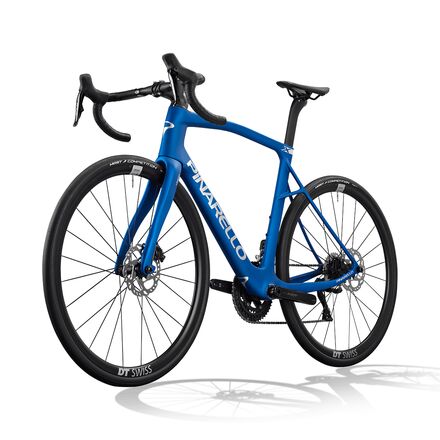

X3 105 Di2 Road Bike
Quantity
Pinarello X3 105 Di2 pairs T700 carbon and X Stays 2.0 for rough pavement
The Pinarello X3 105 Di2 endurance road bike runs X Stays 2.0, a double-arm top stay anchored at four points with a new lower attachment point that minimizes rebound. A TorayCa T700 UD carbon frame keeps the rear end responsive while absorbing vibration, and the elliptical steering tube stiffens the front end against twisting while sharpening steering response.
What Our Gearhead® Experts Are Saying:
“Ten millimeters of seatpost flex is the detail I notice most on this build. The tires take the first hit on chip seal, and the post absorbs what gets through before it reaches the saddle, so my position stays steady through the last hour.”
Heads up! We do our best to keep bike specs and images current, but occasional component changes can happen without warning, and sometimes the photos might not show the exact build you'll receive. If you want to double-check the details, our Gearhead® Experts are always here to help.
Details
- Carbon endurance road bike for long, comfortable days on rough pavement
- TorayCa T700 UD carbon frame — stays responsive while absorbing road vibration
- X Stays 2.0 — double-arm top stay with a lower linkage that minimizes rebound
- Flexing seatpost — 10 millimeters of longitudinal flex absorbs vibration under the saddle
- Elliptical steering tube — adds stiffness and precision with integrated front cable routing
- Shimano 105 Di2 groupset — 12-speed electronic shifting across two chainrings
- Room for tires up to 40 millimeters — ships with tubeless-ready 38 millimeter tires
- Down tube storage port — fits a compact tool bag with puncture-repair tools
- Item #PINI08P
- Frame Material
- TorayCa T700 UD carbon
- Fork
- Pinarello Onda Fork, ForkFlap
- Front Derailleur
- Shimano 105 Di2 FD-R7150
- Rear Derailleur
- Shimano 105 Di2 RD-R7150
- Crankset
- Shimano 105 FC-R7100
- Bottom Bracket
- Shimano SM-BBR60 ITA
- Cassette
- Shimano 105 CS-R7100, 12-speed
- Chain
- Shimano CN-M8100
- Brake Type
- Disc
- Rotors
- [Front] Shimano RT-CL800 160mm
- Handlebar
- MOST Jaguar Claw Ultra Alu
- Bar Tape
- MOST Ultragrip Evo 3mm
- Stem
- MOST Claw Ultra Aero Alu
- Saddle
- MOST Lynx My26
- Seatpost
- Pinarello Aero Seatpost
- Wheelset
- DT Swiss A1800 X
- Front Axle
- 12 x 100mm, tool-free removal
- Rear Axle
- 12 x 142mm, tool-free removal
- Tire Clearance
- 40mm
- Tires
- MOST TLR
- Tire Size
- 700c x 38mm
- Pedals
- Not included
- Activity
- Road cycling
Related Categories
Frequently Asked Questions
What groupset does the Pinarello X3 105 Di2 Road Bike come with?
The model name indicates the Pinarello X3 105 Di2 is spec'd with Shimano 105 Di2 electronic shifting; see the product listing for the exact 105 submodel, crankset, cassette ratios, and whether it ships with rim or disc brakes.Is the Pinarello X3 105 Di2 Road Bike compatible with other Shimano Di2 components and accessories?
Because this bike is built around Shimano 105 Di2, Di2 components are generally interoperable across Shimano’s ecosystem; verify junction/battery location, connector type, and firmware compatibility on the product page before mixing groupset levels.How should I evaluate fit for the Pinarello X3 105 Di2 Road Bike?
Check the Pinarello X3 105 Di2 geometry chart and available frame sizes on the product listing, then compare stack/reach to your current bike or fit numbers to choose the appropriate size.Is the Pinarello X3 105 Di2 Road Bike more race-oriented or endurance-focused?
The model name signals a road-racing specification, but confirm the frame geometry and material shown on the product page—shorter wheelbase and aggressive stack/reach point toward race orientation, while relaxed geometry indicates endurance comfort.What should I check about wheel and tire compatibility for the Pinarello X3 105 Di2 Road Bike?
Review the product listing for the bike’s stock wheelset (if included), axle standards, rim/tire compatibility, and maximum tire clearance to confirm tubeless capability and the tire widths you can run.
