Pinarello

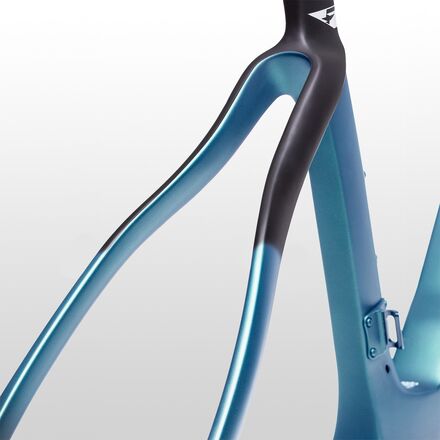

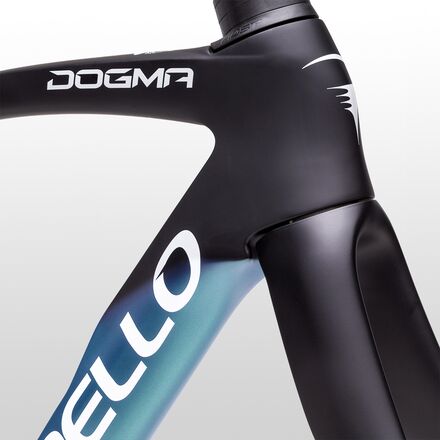

Dogma F Disc Road Frameset

Be the first to review
Current price: $5,000.00 Original price: $6,950.00
28% off
Color:Electro Violet

Size:

GeometryFind your size

Quantity

Customize Your Build

Why We Like The Pinarello Dogma F Disc Road Frameset

We see the Dogma from Pinarello as a top-performance racing machine that takes on rugged, rigorous courses with no holds barred. The Dogma is the pinnacle of success in the racing industry, and it has ridden first across the finish line more times than we can count. It's the culmination of Pinarello's experience and mastery, making it an all-in-one package that can do it all from climbs to descents, sprints to victory laps. No matter what is thrown our way, the Dogma can handle it, and you can bet it'll do it with finesse.

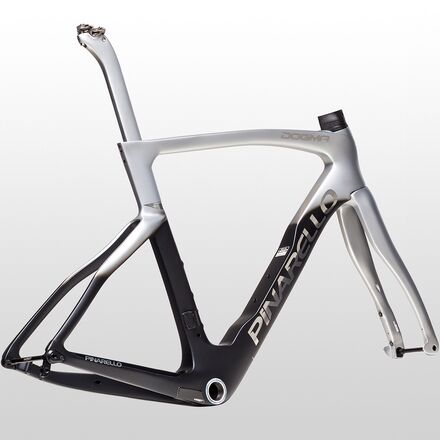

The Dogma F Disc Road Frameset is made to be a road-savvy, racing machine. For high performance, it's designed with high tensile and high modulus carbon fiber, and it's paired with the Onda Fork. This fork is a stand-out in Pinarello technology since 2000. With the shape delivering precise turning capabilities, stability, and the reduction of longitudinal and lateral shocks, this fork has everything we need to take on grueling climbs and victorious descents that dip into tight turns. This is a frame that's only compatible with electronic drivetrains for smooth and effortless shifting every time. It should also be noted that this frame requires the Most Talon Ultra Light handlebar, sold separately. Last, we appreciate the clean aesthetics and wind-slicing speed that comes with TiCR internal cable routing, which offers cable protection for longevity as well as aerodynamic advantages for our ride.


*Due to a high demand in the global supply chain and bike industry since the start of the pandemic, material weight and exact components are subject to change. We are working diligently to keep tech specs updated, and any adjustments will be of equal or better spec level. If you have any questions, reach out to a Gearhead by chatting online or calling 1-888-276-7130.


Details

  • Race frame balances aerodynamics with speed and handling
  • Carbon T1100 1K frame for enhanced lightness and durability

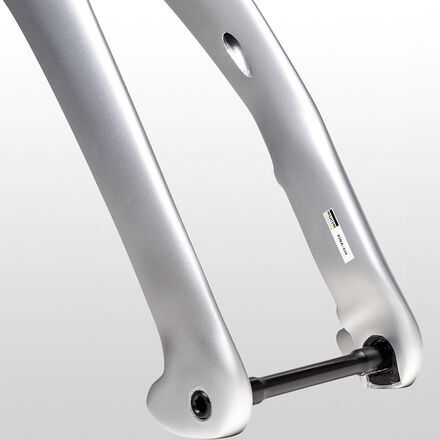

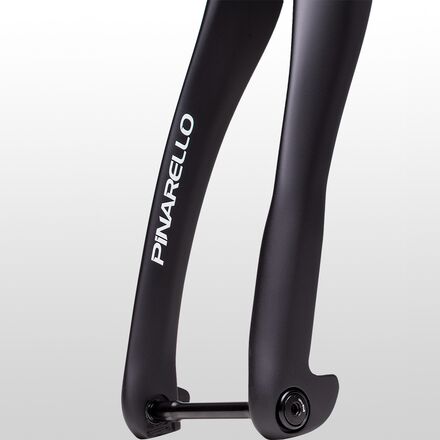

  • Onda Fork delivers quality handling and turning capabilities
  • TiCR internal cable routing hides cables efficiently
  • Disc brakes provide capable stopping power in all conditions
  • Item #PINI032
Frame Material
carbon toraya T1100 1K dream carbon with Nanoalloy Technology
Wheel Size
700c

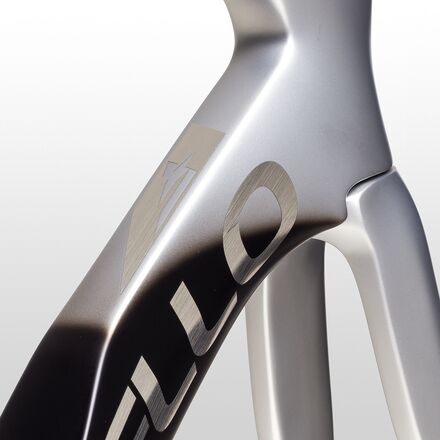

Fork
Onda fork Dogma F with ForkFlap

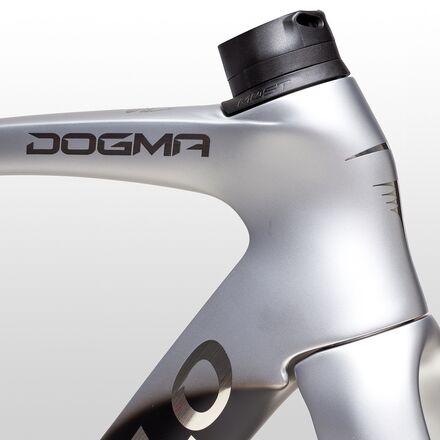

Head Tube Diameter
Drop-in bearing system, proprietary
Headset Included
yes

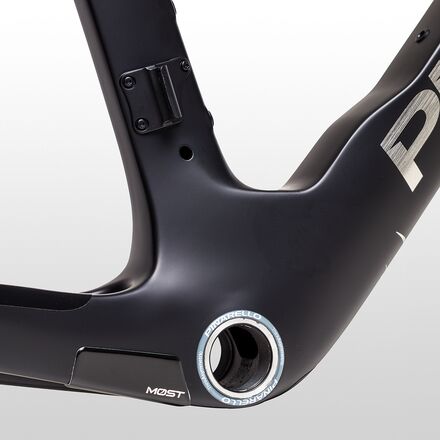

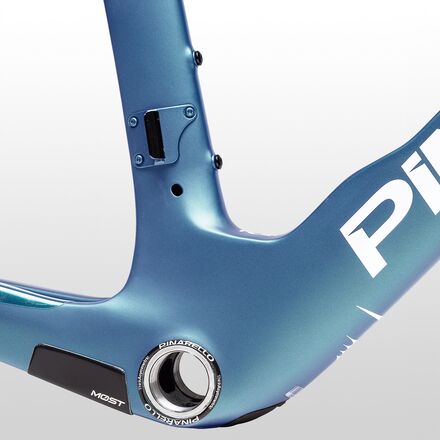

Bottom Bracket Type
Italian threaded
Cable Routing
internal
Front Derailleur Mount
braze-on
Brake Type
flat mount disc
Handlebar
integrated MOST talon ultra light (sold separately)

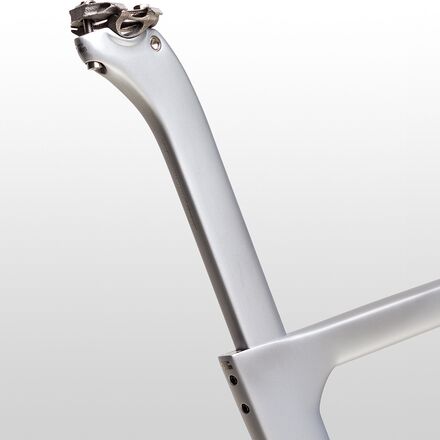

Seatpost
Pinarello aero
Seatpost Diameter
proprietary
Front Axle
12 x 100mm thru-axle
Rear Axle
12 x 142mm thru-axle
Tire Clearance
28mm
Activity
road cycling
Manufacturer Warranty
2 years
