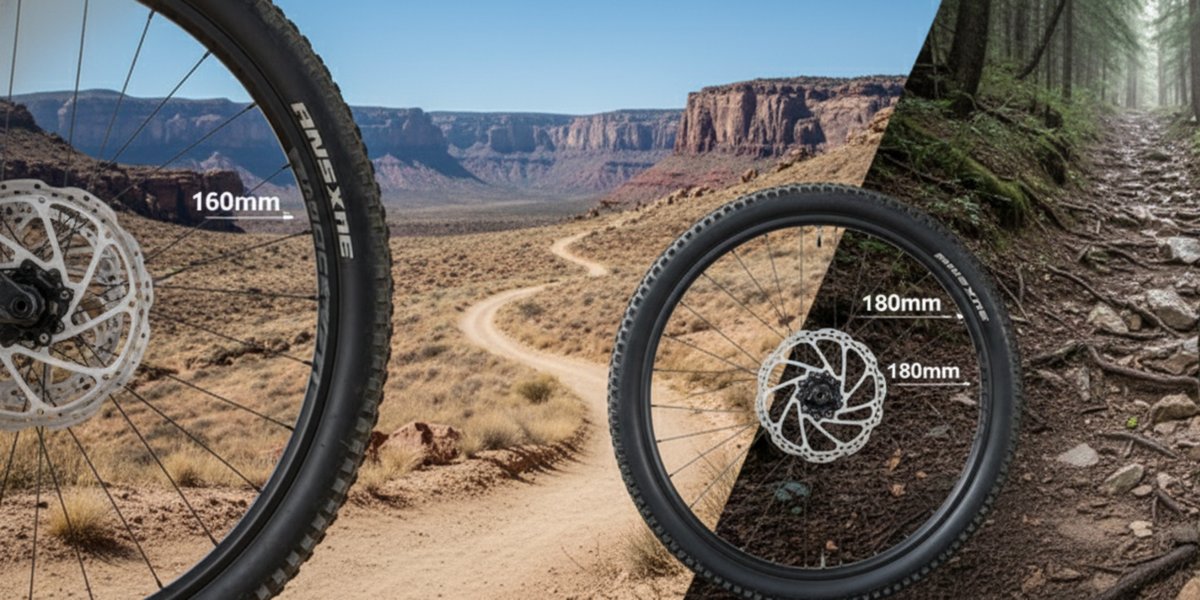

What does rotor sizing (160/180/203) mean?

A concise explainer of how rotor diameter affects braking torque, heat management, weight and modulation — and when to step up from 160mm to 180mm or 203mm.

Definition

A rotor size is the disc diameter measured in millimetres (common road and trail sizes: 160, 180, 203 mm). Rotor diameter directly changes braking torque, heat capacity and mechanical leverage. Changing rotor size changes how hard you must pull the lever and how well the system resists fade on long descents.

Why It Matters

Rotor diameter controls three ride-critical outcomes: stopping power (torque), thermal capacity (fade resistance), and unsprung weight/handling. A 20 mm jump (160 → 180) increases mechanical leverage and heat sink enough to matter on long descents or when you carry loads.

Related Categories

Short lead-in line.

Bike Brakes — choose rotors and calipers matched to stopping needs

Bike Wheels — rotor choice affects hub compatibility and wheel build

Road Bike Disc Brakes — road-specific options and weight/aero trade-offs

Road Brake Pads — pad compound matters more with larger rotors and heat

Tools for the Shop — mounting, torque and alignment tools for safe swaps

How It Works

Think of a rotor like a lever arm. Brake calipers apply a radial force to the rotor; torque at the hub equals that force times rotor radius. Larger diameter = more torque for the same lever force, so modulation feels stronger and less lever travel is required for a given stopping force.

Mechanically:

Torque ∝ force × radius. A 180 mm rotor gives ~12.5% more radius than a 160 mm rotor, so roughly 12.5% more braking torque assuming identical pad friction.
Thermal mass increases with rotor area and thickness; bigger rotors dissipate heat faster and reduce pad temperature rise during repeated stops.

Conceptual diagram (imagine): wheel hub at center, rotor circle; radius increase creates longer lever arm and larger peripheral area to shed heat. When you upsize, you may need a caliper adapter (post-mount or flat-mount) and may change pad behaviour — check Bike Brakes and wheel fitment before ordering.

Pro tip: swapping rotor size usually means new adapters, sometimes new rotors (centerlock vs 6-bolt), and a fresh bleed. Don’t guess—measure caliper clearance and check torque specs.

Key Specs/Thresholds

Common sizes: 140 mm (less common on discs), 160 mm (most common road/gravel), 180 mm (more braking torque/heat), 203 mm (endurance, eMTB, bikepacking, heavy loads).
Typical weight delta (approx): 160 mm rotor ~ 80–120 g; 180 mm ~ 95–140 g; 203 mm ~ 120–200 g. Exact weight depends on construction (full-steel vs two-piece aluminium carrier).
Mount standards: 6-bolt or Shimano Centerlock. Centerlock lockring torque: ~40 Nm (manufacturer-dependent). 6-bolt rotor bolts: typically 6–8 Nm.
Adapter specs: post-mount adapters are sized by rotor difference (e.g., 160→180 requires a +20 mm adapter). Check manufacturer adapter chart.
Torque and hardware: tighten rotor mounting bolts to spec (6–8 Nm) and lockrings to spec (manufacturer; often ~40 Nm). Re-torque after first ride.
Temperature behaviour: bleeding/boiling point of mineral oil and DOT fluids differs. Larger rotors reduce peak pad temperatures but still require correct fluid and pad compound for fade resistance.

Common Misconceptions

Bigger rotors always stop you faster: false. Bigger rotors increase torque and heat capacity, but pad compound, lever feel, rotor condition, and caliper design matter greatly.
Upsizing front rotor is the only change needed: false. You often need a mount adapter and may have to re-center the caliper and re-bleed brakes.
Rotors warp because size increased: not directly. Warping is usually from improper torque, lug problems, overheating beyond material limits, or rim/hub flex.
Pros only use tiny rotors to save weight: partly true for flat races. WorldTour teams choose rotor sizes case-by-case—160 mm is common on technical courses; 180 mm appears for long alpine descents.

When to Choose/Use

If you ride mixed road/gravel with moderate descents: 160 mm front and rear (or 160F/160R) provides balanced weight and modulation.
If you race or ride long, steep descents regularly: 180 mm front (180F/160R) reduces fade and gives stronger initial bite.
If you carry heavy loads (bikepacking) or run eMTB/large riders on technical trails: use 203 mm front and 180 mm rear or 203/203 for extreme heat management.
Commuting/city: 160 mm keeps weight and rotor snag risk lower but ensure pad compound resists contaminants.

Sources

Shimano Technical Documents (2020) — rotor specs, lockring torque and adapter charts.

SRAM Service & Tech Info (2021) — rotor materials, heat management notes and pad compatibility.

Park Tool: Disc Brake Basics (2019) — mounting, torque, and alignment best practices.

Related Categories

Bike brakes— Shop bike brakes
Road bike disc brakes— Shop road bike disc brakes
Bike tools— Shop bike tools
Bike multi tools— Shop bike multi tools
Seatposts— Shop seatposts

Key Takeaways

Rotor diameter directly increases braking torque and heat capacity.
160 mm is a versatile, light choice; 180/203 improve fade resistance on long descents.
Upsizing usually requires adapters, caliper alignment, and a fresh bleed.
Pad compound, mounting standard, and proper torque matter as much as size.

FAQs

Will changing rotor size change my lever feel?

Yes. Upsizing increases mechanical advantage so lever effort per unit braking force drops. Modulation can feel firmer and less lever travel may be needed for the same deceleration. Re-centering the caliper and testing on a short descent is recommended.

Can I put a 203mm rotor on any hub?

Not automatically. You must match the rotor to the hub mount (6-bolt or Centerlock), ensure frame/fork clearance, and fit the correct caliper adapter. Also follow rotor-bolt and lockring torque specs and re-bleed if needed.
