Definition

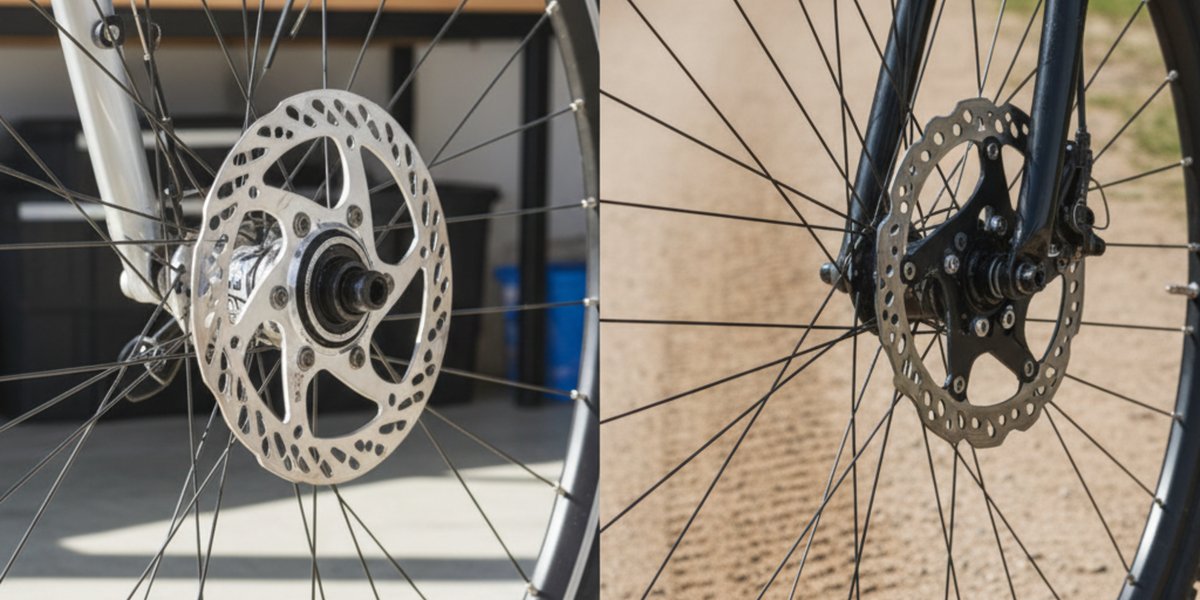

Centerlock and 6‑bolt describe two industry-standard ways a disc rotor fastens to a hub. Centerlock uses a splined hub interface plus a threaded lockring. 6‑bolt uses six M5 bolts (evenly spaced) that pass through the rotor and thread into the hub flange. Both deliver the same stopping surface — the difference is the interface and the service details.
Why It Matters
Mounting standard affects parts compatibility, service speed, wheel weight, and torque requirements. Use the wrong adapter or incorrect torque and you risk rotor wobble, noise, or catastrophic failure under load — all bad for a fast group ride or a rainy training session.
Short lead-in line.
Bike Wheels — Choose hubs/wheels with the right rotor interface for your setup
Bike Brakes — Brake caliper alignment and rotor choice go hand-in-hand
Hubs & Skewers — Hub compatibility determines whether you need adapters
Bike Tools — Proper torque tools make installation reliable
How It Works
Think of the two systems as two ways to transmit braking torque from rotor to hub.
Centerlock: a splined hub body (similar to a cassette spline) accepts the rotor. A threaded lockring clamps the rotor axially against the hub flange. The spline alignment centers the rotor precisely; the lockring supplies the axial preload.
6‑bolt: six bolts compress the rotor against the hub flange. The rotor's 6‑hole pattern aligns to the flange; tightening the bolts provides axial clamp.
Conceptual diagram (visualize): hub flange (flat) with six bolt holes vs. hub body with internal splines and threaded lockring. In both systems, the rotor must be flat and concentric to the hub to avoid rub and vibration.
Practical notes:
Adapters exist: you can mount a 6‑bolt rotor to a Centerlock hub using a Centerlock-to-6‑bolt adapter (a splined ring with threaded standoffs for the six bolts). You can also fit a Centerlock rotor to some 6‑bolt hubs with adapters, but fit and stack height matter.
Rotor runout is more a function of correct torque and seating than the standard itself. Tighten bolts or lockring to spec, clean mating surfaces, and recheck trueness.
> Pro tip: Before installing, wipe mating surfaces with isopropyl alcohol. Small corrosion or grease between rotor and hub flange is a common source of rotor wobble.
Key Specs/Thresholds
Rotor diameters: common sizes 140 mm, 160 mm, 180 mm, 203 mm.
6‑bolt fasteners: M5 bolts, typically tightened to 4–6 Nm (manufacturer-dependent). Use star/alternating pattern for even clamp.
Centerlock lockring: common recommended torque ~40 Nm (check hub manufacturer). The lockring torque is markedly higher than individual 6‑bolt fasteners because it secures the spline interface.
Bolt threadlocker: medium-strength (blue) threadlocker is commonly used on 6‑bolt installations; follow component maker guidance.
Weight delta: centerlock hubs + lockring can be slightly lighter than adding six bolts and longer flange tooling, but differences are small (typically ~10–30 g depending on hardware).
Common Misconceptions
"Centerlock is stronger than 6‑bolt." Not inherently. Strength depends on correct installation, material, and torque. Both standards are robust when installed per spec.
"You can torque 6‑bolt bolts as high as centerlock lockrings." No — 6‑bolt hardware uses low Nm values (4–6 Nm). Over‑torque risks stripped threads or crushed rotor holes.
"Adapters always preserve rotor alignment perfectly." Adapters introduce more interfaces; each interface is another place for tolerance stack-up. Quality adapters are fine, but always check runout after installation.
"Any hub can accept any adapter." No. Confirm spline pitch and lockring thread standard when selecting adapters.
When to Choose/Use
If you buy new wheels: prefer the system supported natively by the hub. That keeps stack height and interface simple.
If you already have a Centerlock hub and an abundance of 6‑bolt rotors: use a reputable Centerlock-to-6‑bolt adapter and torque bolts to spec. Recheck runout after installation.
If you swap wheels between bikes frequently: Centerlock makes quick swaps slightly faster (single lockring versus six bolts). For team mechanics and pro pit work, that marginal speed matters.
If you run mixed hardware (aftermarket rotors, different hubs): plan for spare adapters and a calibrated torque wrench to keep everything dialed.
> Safety notice: If you find stripped threads, severe runout, or you can’t get to published torque values, consult a shop tech. Riding with a loose or warped rotor is dangerous.
Sources
Shimano Technical Documents (2016) — official spec guidance for centerlock interfaces and lockring torque.
Park Tool — Disc Brake Rotor Installation (2021) — step‑by‑step install and torque recommendations.
Sheldon Brown Archive (2019) — practical notes on rotor mounting variations and history.
Related Categories
Internal Links
Key Takeaways
Centerlock uses a splined interface + lockring; 6‑bolt uses six M5 bolts.
Torque matters: 6‑bolt bolts ~4–6 Nm; centerlock lockrings ~40 Nm (check maker).
Adapters enable cross‑compatibility but add interfaces—always check runout.
Use a calibrated torque wrench and consult a shop if threads or runout are problematic.
FAQs
Can I use a Centerlock rotor on a 6‑bolt hub?
Yes — with a quality Centerlock‑to‑6‑bolt adapter. Confirm stack height, seatment, and torque the six bolts evenly to spec. Recheck rotor runout after installation.
What happens if I over‑torque the centerlock lockring?
Over‑torque can damage hub threads or deform the lockring, making removal difficult and risking compromised clamping. Use the manufacturer's torque spec and a calibrated wrench.
