Definition

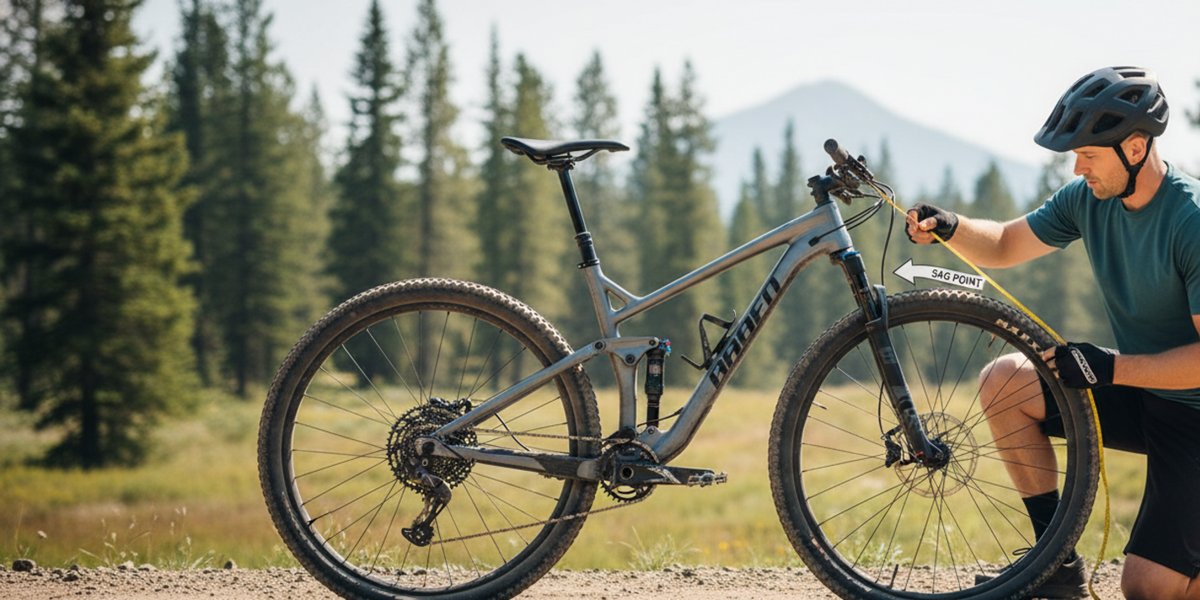

Bike suspension sag is the amount your fork or rear shock compresses under the rider’s weight when you’re in a normal riding position. Measured in millimetres or as a percentage of total travel, sag sets the suspension’s resting point and determines initial suspension sensitivity and geometry under load.
Why It Matters
Correct sag balances traction, small-bump compliance, and geometry. Too little sag makes the bike skittish and harsh. Too much sag bottoms out, slows recovery, and alters head- and seat‑tube angles.
Related Categories
Short lead-in line.
Suspension mountain bike forks — Choose fork travel and spring rates that suit sag targets
Rear suspension parts & accessories — Shock service and tokens change sag behavior
29-inch suspension forks — Wheel size affects leverage and recommended sag
Mountain bike tires — Tire pressure interacts with sag for traction
How It Works
Suspension travel is the maximum distance a fork or shock can compress. Sag sets the working portion of that travel.
A simple diagram in your head: total travel is a line; sag is the initial segment already used while you sit on the bike. The remaining travel is for bumps and big hits.
Mechanically, sag is created by the rider’s static load compressing either an air spring or coil spring. On air shocks, you change sag with pressure. On coils, you change preload or swap springs for a different spring rate.
Practical measurement steps (fork and shock):
Put on your normal kit, hydration and shoes. Carry what you usually ride with.
With the bike upright (against a wall or held by a friend) and the suspension fully extended, set a rubber O‑ring or mark on the stanchion/shaft at the dust wiper.
Sit on the bike in your usual riding position, feet on pedals, hands on bars, and have a friend steady the bike. Don’t bounce; settle for 2–3 seconds.
Carefully dismount without compressing the suspension further and measure the distance from the mark to the dust wiper.
Convert the millimetres to a percentage of travel: (sag mm ÷ total travel mm) × 100.
Pro tip: For accurate fork sag, keep your elbows slightly bent and weight centered. For rear sag, assume a neutral pedaling posture; don’t preload the shock with a pedal stroke.
Use suspension fork and rear shock manufacturer setup charts as starting points.
Key Specs/Thresholds
Fork sag (trail/enduro): generally 15–30% of travel. Example: 160 mm fork → 24–48 mm sag.
Rear shock sag: generally 20–30% of travel for most trail and enduro bikes. Example: 150 mm shock → 30–45 mm sag.
Cross‑country (XC): aim lower—10–20% fork, 15–25% rear for more efficiency and snappy response.
Downhill (DH): higher sag (25–30%+) can improve traction but increases geometry change.
Air spring adjustments: change pressure by 10–20 psi increments, then re-check sag.
Coil springs: swap springs in ~5–10 N/mm increments or adjust preload small amounts (note: preload changes geometry and has limited effect on effective spring rate).
Common Misconceptions
“More sag always means more grip.” Not true. Excessive sag reduces remaining travel and increases bottoming risk.
“Static sag equals rider sag.” Static (bike on floor with no rider) is different. Measure rider sag—it's the one that matters.
“Add preload to compensate for soft feeling.” Preload on a coil removes initial travel but does not change spring rate; use a stiffer spring if you need significant change.
“One pressure fits all.” Different trails, tires, and rider positions need adjustments.
When to Choose/Use
If the bike feels harsh over chatter: add sag (reduce air pressure) small amounts until compliance improves.
If you’re bottoming on big hits: reduce sag (add pressure or stiffer spring) in 10–20 psi or one-spring-step increments.
If climbing feels sluggish and geometry feels slack: reduce sag toward the lower end of the recommended range.
If you’re unsure or switching coil/air systems, consult a suspension tech or use manufacturer setup tools.
Sources
RockShox (2021) — official sag setup recommendations and measurement steps.
FOX (2022) — pressure charts and sag guidelines for air and coil systems.
Pinkbike (2019) — practical setup tips and real‑world testing notes.
Key Takeaways
Sag is the suspension compression under rider weight, measured in mm or percent travel.
Common targets: fork 15–30% travel, rear shock 20–30%, adjust for discipline.
Measure rider sag with normal kit, an O‑ring, and a helper for best accuracy.
Use pressure or spring changes in small increments; consult a tech for big changes.
FAQs
How often should I check sag?
Check sag after any major setup change—new tires, different kit, shock service, or big temperature shifts. For regular riding, verify monthly or before key rides or races to keep handling consistent.
Can I measure sag alone?
You can, but a helper makes it easier. If solo, steady the bike against a wall, mark the stanchion, sit in your normal position, then carefully dismount and measure. Small errors matter; repeat to confirm.
