Space Horse Tiagra Road Bike
Out of Stock
Don't worry though, we have a lot more Pre-Configured Gravel Bikes in stock than that.
Shop Similar ProductsWhy We Like The Space Horse Tiagra Road Bike
Whether you are planning a quick adventure or a full week of touring, having a bike you can truly depend on is a necessity. All-City Bicycles knows how important a trustworthy bike is, bringing you the Space Horse Tiagra Road Bike that is ready to take you anywhere you want to go. The frame, built with 612 Select Chromoly Steel, ensures a sturdy, smooth, and agile ride and is offered in seven different frame sizes to allow you to find the perfect fit.
The Space Horse features a Shimano Tiagra 4700 Groupset, providing a high-quality performance for entry to mid-level riders. The new 10-speed cable pitch allows for compatibility with wider frames and is upgraded with cascaded technology from DURA-ACE. With the Tiagra Groupset creating such a smooth ride, your daily commute, gravel trail, or touring trip offers an all-around a good time.
Details
- Classic style gravel bike designed for any kind of adventure
- Available in seven frame sizes for the perfect fit and consistent ride
- Mounts on both front and rear racks allow for storage on bikepacking trips
- Custom dropouts and fork ends accommodate 12mm thru-axles
- Liquid paint and E.D. coating protect frame against rust
- Item #ACA000C
- Frame Material
- 612 select chromoly steel, TIG welded and brazed, E.D. coated
- Fork
- 612 select chromoly steel, all-city signature fork ends and crown, TIG welded and brazed, E.D. coated

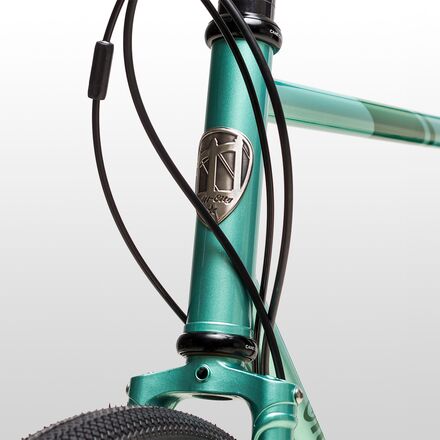

- Headset
- cane creek 40 series
- Shifters
- shimano tiagra 4700, 2x10
- Front Derailleur
- shimano tiagra 4700
- Rear Derailleur
- shimano tiagra 4700, GS 10-speed

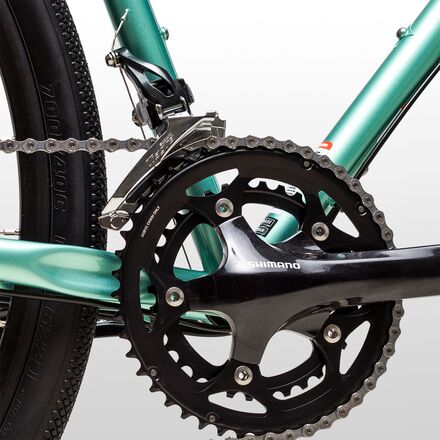

- Crankset
- shimano tiagra R460
- Chainring Sizes
- 46/34t
- Crank Arm Length
- [43cm, 46cm] 165mm [49cm, 52cm] 170mm [55cm] 172.5mm [58cm, 61cm] 175mm
- Bottom Bracket
- shimano BSA
- Cassette
- MicroSHIFT
- Cassette Range
- 11-32t
- Chain
- KMC X10 EPT
- Brakeset
- tektro MD-C550, with short cable pull
- Brake Type
- disc brake
- Rotors
- tektro TR 160-22, 160mm, 6-bolt
- Handlebar
- AL6061
- Handlebar Drop
- 125mm
- Handlebar Width
- 31.8mm
- Bar Tape
- all-city embossed black tape
- Stem
- AL6061, 3D forged, 4-bolt stem, ±6° Rise
- Stem Length
- 31.8mm
- Saddle
- All-City Gonzo or DDK-5255
- Seatpost
- 27.2mm, two-bolt, 350mm length
- Wheelset
- WTB ST i19, TCS 2.0
- Hubs
- All-City Go Devil, 32h, 6-bolt
- Front Axle
- 100 x 12mm thru-axle
- Rear Axle
- 142 x 12mm thru-axle
- Tire Clearance
- [43cm, 46cm] 650b x 47mm, [49cm, 52cm, 55cm, 58cm, 61cm] 700c x 45mm, 650b x 47mm
- Tires
- Vee Speedster
- Tire Size
- [43cm, 46cm] 650b x 38mm, [49cm, 52cm, 55cm, 58cm, 61cm] 700c x 40mm
- Pedals
- not included
- Claimed Weight
- 27lb 1.8oz (12.3kg)
- Activity
- gravel, road cycling
- Manufacturer Warranty
- 3 years
