Wolf Tooth Components
Be the first to review
Wolf Tooth Components

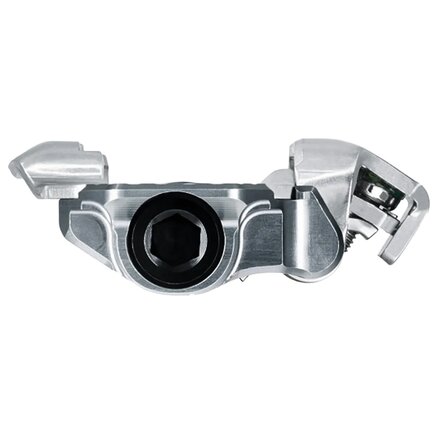

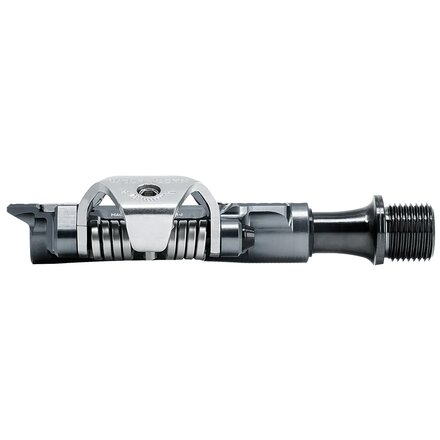

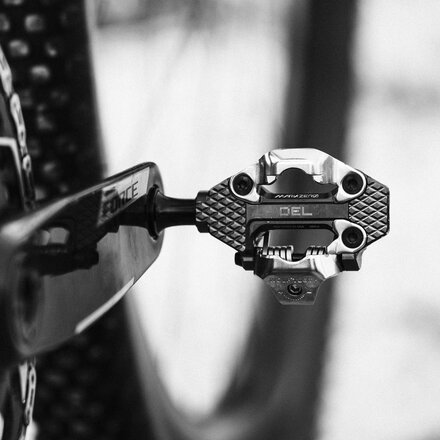

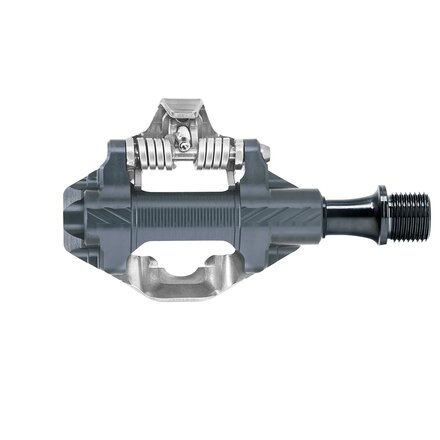

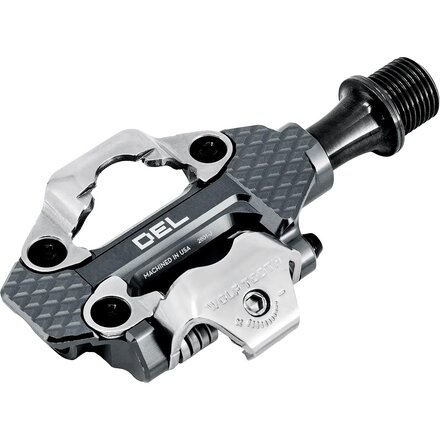

MK0 DEL Gravel Race Clipless Pedal

Be the first to review
$364.95
Color:Shadow Gray

Size:

Quantity



Join Summit Club+ and


Wolf Tooth MK0 DEL gravel pedal cuts 43g off the original

MK0 marks the second generation of Wolf Tooth's DEL platform, and it drops from 217g to 174g per pair, a 43g cut. The titanium axle now carries a diamond-like carbon coating rather than the original's stainless steel, moving mass reduction to the axle rather than the pedal shell. Platform area comes down slightly too, from 611mm² to 559mm², the tradeoff Wolf Tooth accepted to hit that weight figure on an already minimal single-sided body. For gravel racers chasing marginal gains, that's a straightforward weight-for-weight tradeoff worth knowing before swapping pedals.


What Our Gearhead® Experts Are Saying:

"The pedal reorients itself the instant my foot lifts, so the engagement face sits ready before I even look down to clip back in. That's worth more mid-race than a lighter number on a spec sheet, because a fumbled remount costs real seconds a scale never measures."


Details

  • Ultralight single-sided pedal for competitive gravel racing
  • Self-orienting body flips face-up after every unclip
  • Titanium axle with DLC coating trims weight at the core
  • Adjustable Q factor sets stance width at 51, 55, or 59mm
  • Open center design sheds mud between binding cages
  • Machined in the USA, backed by Right to Repair
  • Rated for a 200-pound maximum rider weight
  • Skip titanium cranksets to avoid axle seizing risk
  • Item #WFCA06I
Material
[Body] 6061-T1 aluminum, [Axle] DLC-coated titanium, [Hardware] PVD-coated titanium
Float
Cleats
2-bolt, SPD
Entry / Release
12°
Includes
Pedals, cleats, shims, bolts
Dimensions
[Thickness] 14.5mm, [Platform area] 559mm²
Claimed Weight
[Pair] 174g
Activity
Gravel
