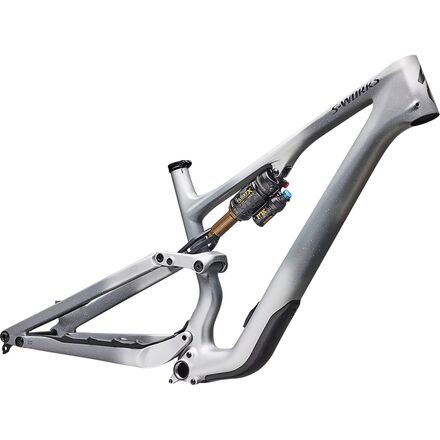

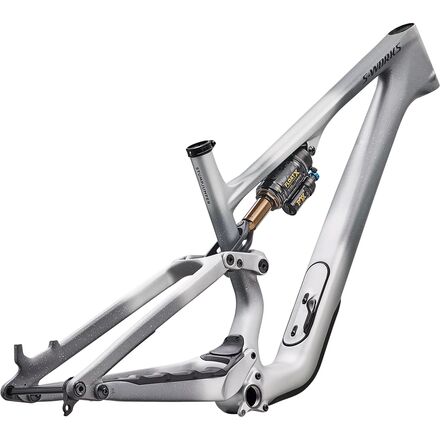

S-Works Stumpjumper 15 EVO Frame
Add Ons
Join Summit Club+ and
GENIE shock frameset, 145mm rear travel, six-way geo, SWAT 4.0, threaded BB, UDH
What Our Gearhead® Experts Are Saying:
“GENIE’s linear-then-rising spring curve gives grip like a coil with air-spring punch. The chassis hits that sweet spot: 145mm rear travel, 64°-capable front end, and geo flips that meaningfully shift stability vs. pop. SWAT 4.0 solves storage, threaded BB/UDH simplify service, and Di2-only keeps routing tidy for a silent, race-ready build.”
Specialized designed the Stumpjumper 15 EVO Frameset to erase the classic trail-bike compromises. The core is GENIE—an air-spring architecture that runs a linear rate through the bump zone for traction and control, then transitions to a pronounced rising rate in the last third of travel. On trail, that translates to 16.3% better bump force management versus a standard air spring, 57% better traction, and 39% fewer bottom-outs, so 145mm of rear travel behaves like much more without the weight and friction of a coil.
Geometry breadth is built in. Six distinct settings let you refine head angle and bottom bracket height to match terrain and riding style, while aftermarket links preserve handling whether you choose full 29 or a mixed-wheel rear for tighter corners and quicker manuals. The stock layout centers the rider for corner support and mid-stroke pump, with a low BB and slack head angle for stability when speeds get high.
The frameset is engineered for clean, quiet, durable builds. SWAT 4.0 integrates downtube storage that’s weather-resistant and rattle-free; a threaded bottom bracket eases home service; internal routing stays tidy; and SRAM UDH future-proofs the hanger interface. Electronic-drivetrain-only compatibility simplifies the cockpit and improves sealing at the entry points, reducing noise and maintenance. Pair it with a 210×55 shock (included FLOAT X Factory with GENIE tune) and your choice of 150–160mm fork to land a trail bike that sprints, corners, and descends like it’s breaking the rules—because it is.
Details
- All-mountain trail frameset for rowdy everyday riding and big-day missions
- GENIE Shock Technology delivers coil-like small-bump feel with end-stroke support
- 145mm rear travel rides “bigger” with 39% fewer bottom-outs and 57% better traction claims
- Six-way geometry adjustment tunes head angle and BB height for terrain and style
- Aftermarket links support 29/29 or mixed-wheel builds without changing core geometry
- SWAT 4.0 in-frame storage carries tools, layers, and snacks low and rattle-free
- FACT 11m carbon chassis with threaded BB, internal routing, and SRAM UDH compatibility
- Electronic-drivetrain-only for a clean cockpit and quiet, low-maintenance setup
- Item #SCQ1X30
- Frame Material
- FACT 11m carbon
- Wheel Size
- 29in or MX
- Rear Shock
- FOX FLOAT X Factory with Specialized GENIE Shock Tech, 210x55mm
- Rear Travel
- 145mm
- Fork Travel
- 150–160mm (suggested)
- Bottom Bracket Type
- threaded
- Cable Routing
- internal
- Brake Type
- disc
- Compatible Components
- electronic drivetrains only
- Seat Collar
- 38.6mm
- Rear Axle
- 12x148mm
- Dropouts
- UDH
- Extras
- SWAT 4.0 internal downtube storage
- Claimed Weight
- [S4] 6 lb, 6.3 oz (2.9 kg)
- Activity
- trail
- Manufacturer Warranty
- [Specialized-branded apparel] limited 1 year, [Specialized-branded frames and forks] limited 2 year (limited lifetime with registration within first 90 days), [Roval wheels] limited 2 year (limited lifetime with registration within first 90 days), [Specialized-branded components, suspension, motors & drive systems, equipment, helmets, shoes] limited 2 year, [paint, graphics] limited 2 year, [turbo batteries] limited 2 year or 300 charge cycles
