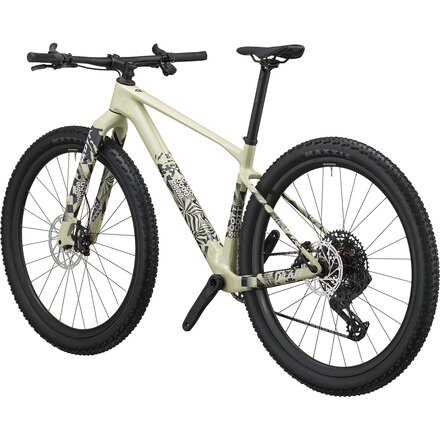

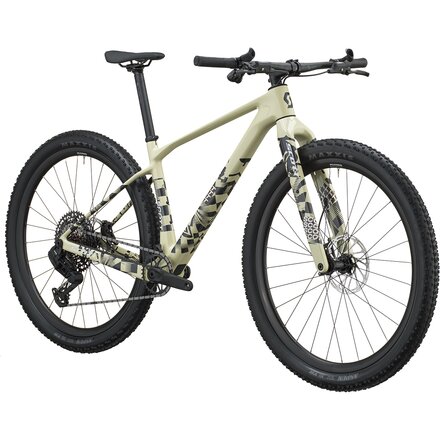

Scale Gravel 20 S1000 Transmission Gravel Bike
Add Ons
Join Summit Club+ and
SRAM S1000 Transmission shifting widens the range of the Scott Scale Gravel 20 flat-bar gravel bike
The Scott Scale Gravel 20 is a carbon flat-bar gravel bike with a rigid HMF carbon fork, a tapered steerer, and 29 x 2.4 inch Maxxis Aspen EXO tires. A 740mm bar with 9 degrees of sweep completes a front end that favors control on loose terrain.
What Our Gearhead® Experts Are Saying:
“The headset adjusts the head angle by 0.6 degrees either way, and that is the first range I check on a flat-bar gravel bike. A few tenths of a degree is enough to tune the steering to the course without swapping parts.”
Heads up! We do our best to keep bike specs and images current, but occasional component changes can happen without warning, and sometimes the photos might not show the exact build you'll receive. If you want to double-check the details, our Gearhead® Experts are always here to help.
Details
- Carbon flat-bar gravel bike for rough roads, loose descents, and long days out

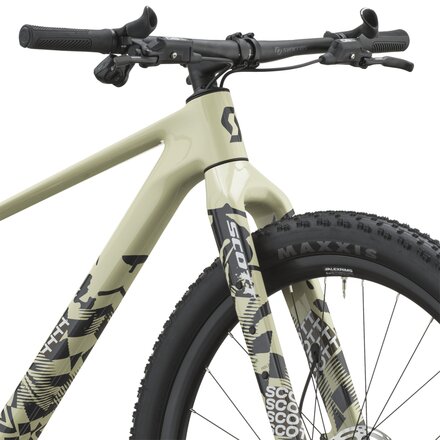

- Carbon frame — HMF carbon with a rigid fork for direct steering on loose ground
- Head angle — moderate 67.9 degree baseline for stable handling on loose descents

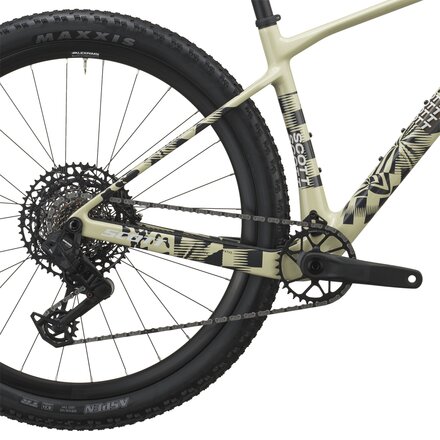

- Drivetrain — SRAM S1000 AXS Transmission, wireless 12-speed with a wide-range cassette
- Tires — Maxxis Aspen 29 x 2.4 inch, wide volume for grip on loose surfaces
- Wheels — tubeless-ready Alex X-30S rims for lower-pressure riding
- Brakes — SRAM DB6 four-piston hydraulic disc for strong, controlled stops
- Mounting options — multiple frame mounts for carrying gear on longer rides
- Item #SCOL1YC
- Frame Material
- Carbon
- Fork
- Scale Rigid HMF
- Headset
- Syncros Acros Angle Adjust & Cable Routing, ZS56/28.6 - ZS56/40
- Shifters
- SRAM AXS Pod Controller
- Rear Derailleur
- SRAM S1000 Eagle AXS Transmission
- Crankset
- SRAM Eagle 70 Transmission
- Chainring Sizes
- 34T

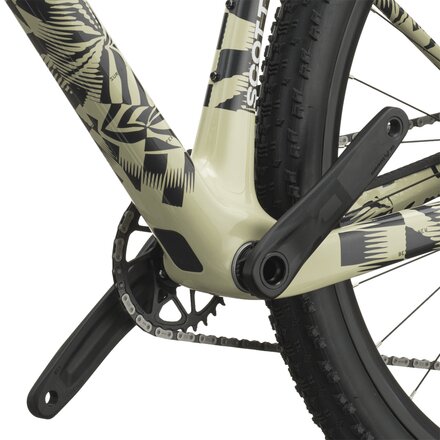

- Bottom Bracket
- SRAM DUB PF92 MTB Wide
- Cassette
- SRAM Eagle XS-1270 Transmission 12-speed
- Cassette Range
- 10-52T
- Chain
- SRAM Eagle 70 Transmission
- Brakeset
- SRAM DB6 4-Piston
- Brake Type
- hydraulic disc, centerlock
- Rotors
- [front] SRAM Centerline CL 180mm, [rear] SRAM Centerline CL 160mm

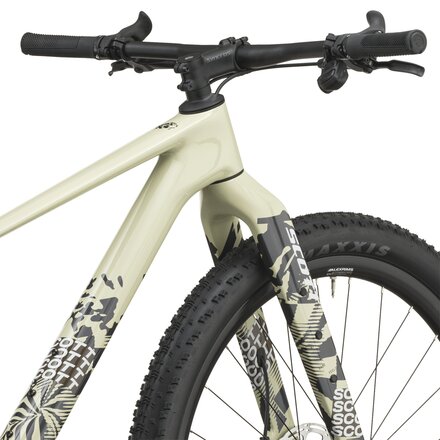

- Handlebar
- Syncros Alloy 6061 T-shape Flat
- Handlebar Width
- 740mm
- Stem
- Syncros Alloy 6061
- Saddle
- Syncros Celista Cut Out

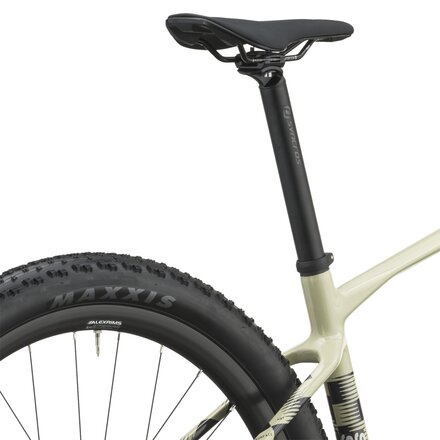

- Seatpost
- Syncros Alloy, 31.6 x 400mm, 10mm offset
- Wheelset
- Alex Rims X-30S 32-spoke
- Hubs
- [front] Formula CL-811, [rear] Formula CL-3248
- Front Axle
- 15 x 110mm
- Rear Axle
- 12 x 148mm
- Tires
- Maxxis Aspen
- Tire Size
- 29 x 2.4in
- Pedals
- Not included
- Extras
- UDH interface, Spirgrips Inner Bar Ends, SRAM AXS powerpack
- Claimed Weight
- 25.13lb (11.4kg)
- Activity
- Gravel
