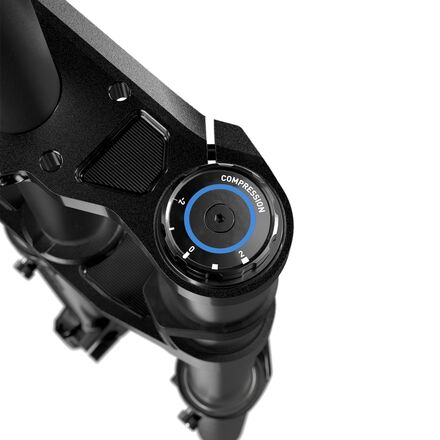

LinearXL air spring and Charger 3.2 RC power the BoXXer Select 27.5in Boost Fork
What Our Gearhead® Experts Are Saying:
"This fork hits the sweet spot for riders building a serious DH setup. The linear spring curve keeps the bike predictable through braking bumps, and the damper is easy to adjust between track conditions. It feels stable at speed without being harsh."
On steep, technical downhill tracks, consistency creates speed. The BoXXer Select 27.5in Boost Fork is engineered around LinearXL, a position-sensitive air spring that maintains a linear force curve through the travel. By reducing speed sensitivity and managing lower leg air behavior, it delivers predictable mid-stroke support and controlled end-stroke performance with a jounce bottom-out system.
The Charger 3.2 RC damper is tuned to complement the LinearXL spring, providing speed-sensitive control with independent rebound and compression adjustments. Its virtually silent operation keeps rider focus locked on terrain feedback. The 38mm chassis balances stiffness and compliance to minimize deflection without transmitting excessive vibration, preserving traction through rough sections.
Details
- Downhill suspension fork for race and park riding
- Optimized for 27.5in wheels with Boost spacing
- LinearXL air spring with jounce bottom-out control
- Charger 3.2 RC damper with independent rebound
- 38mm chassis for precise steering stiffness
- Low-friction SKF seals and Maxima oil
- Item #RSXB0D2
- Travel
- 200mm
- Stanchion Material
- aluminum
- Lower Material
- magnesium
- Crown Material
- forged 6061 T-6 aluminum
- Wheel Size
- 27.5in
- Steer Tube Diameter
- 1-1/8in
- Stanchion Diameter
- 38mm
- Axle To Crown
- 586mm
- Rake
- 44mm, 48mm
- Spring Type
- LinearXL air spring
- Damper
- Charger 3.2 RC
- Adjustability
- rebound, low-speed compression
- Lockout
- no
- Axle
- Boost 20 x 110
- Brake Compatibility
- disc
- Rotor Compatibility
- 200–220mm
- Includes
- bolt-on fender, bottom-out tokens, short/tall crowns star nut, Maxle Stealth
- Claimed Weight
- 2849g
- Manufacturer Warranty
- 2 uears
- Activity
- downhill, enduro
- Manufacturer Part Number
- [44mm offset] 00.4021.276.001, [48mm offset] 00.4021.276.000
