Pinarello
Be the first to review
Pinarello

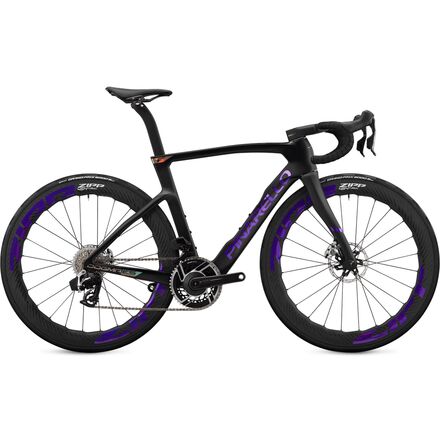

Dogma F Red AXS ES Tissot LTD Carbon Wheel Road Bike

Be the first to review
$17,000.00
Color:ES Tissot

Size:

GeometryFind your size

Quantity


Join Summit Club+ and


Pinarello Dogma F Edizione Speciale Tissot: 1 of 101 numbered editions with SRAM Red AXS and Zipp 454 NSW

Enter our lottery to win a chance at purchasing one of three sizes. Learn More


What Our Gearhead® Experts Are Saying:

"Riding the Dogma F at this spec level makes it clear why Pinarello develops bikes the way they do: the M40X carbon and Hour Record aero geometry are felt in the first acceleration out of a corner. There are 101 of these in existence, and that number is low enough that the bike itself feels like a statement about what road cycling can be at its absolute limit."


Pinarello derived the aerodynamic architecture of this generation directly from their Hour Record project. The AERO-KEEL bottom bracket shell rotates the downtube 3.5° to create a keel shape, the reduced headtube width requires an entirely new elliptical steering tube, and the integrated rear derailleur dropout eliminates the external bolt on the right side of the fork entirely. Each change is a measurable drag reduction that compounds at race speed.


The included Tissot watch is built to the same standard as the bike. It features a 42mm forged carbon case with a COSC-certified Powermatic 80 movement, matching hologram purple accents, and a case silhouette derived from Pinarello's asymmetric fork design.


Heads up! We do our best to keep bike specs and images current, but occasional component changes can happen without warning, and sometimes the photos might not show the exact build you'll receive. If you want to double-check the details, our Gearhead® Experts are always here to help.


Details

  • Limited edition road bike for competitive racing and collecting

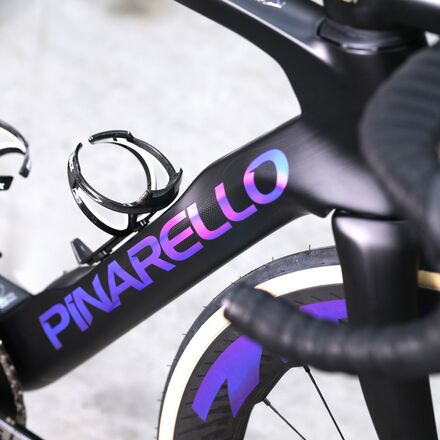

  • All-carbon Pinarello frame — TorayCa M40X layup with Hour Record-derived aero engineering
  • Race geometry — steep seat tube angle and aerodynamic head tube profile optimized for speed
  • SRAM Red eTap AXS 12-speed wireless drivetrain — top-tier electronic shifting with no cables to route
  • Zipp 454 NSW carbon wheelset — custom Hologram Purple decals matching the frame finish

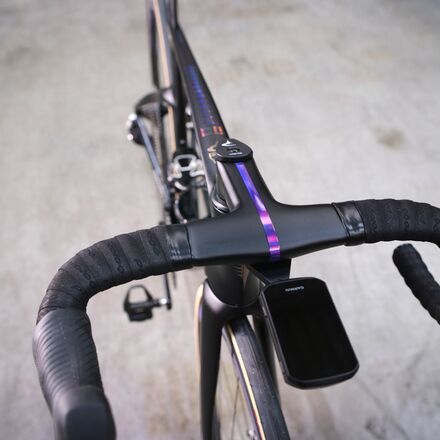

  • MOST Talon Ultra Fast integrated cockpit — lighter and more aero with a natural lever position
  • Limited run of 101 — includes a matching Tissot forged carbon watch in collector's packaging
  • Item #PINI08E
Frame Material
TorayCa M40X Carbon
Fork
Pinarello eTICR Onda Fork with ForkFlap

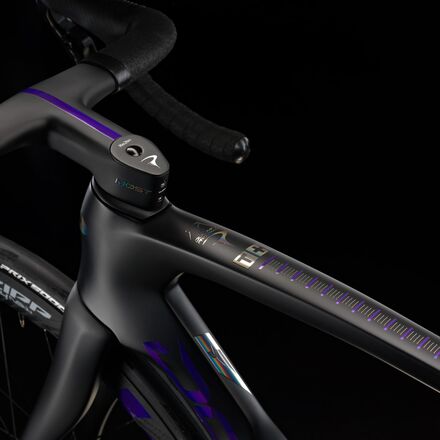

Headset
FSA IS2, 1-1/4, 45° x 45° / 1-3/8, 36° x 45°
Shifters
SRAM Red eTap AXS
Front Derailleur
SRAM Red eTap AXS, 12-speed
Rear Derailleur
SRAM Red eTap AXS, 12-speed

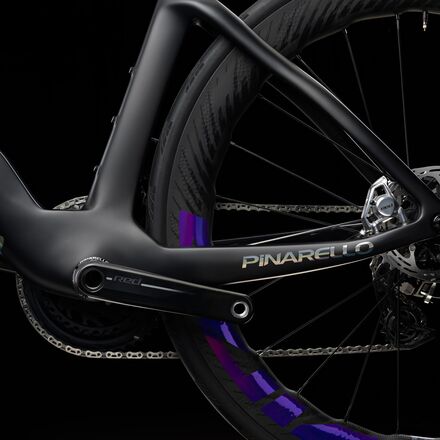

Crankset
SRAM Red eTap AXS, 12-speed
Chainring Sizes
48/35t
Crank Arm Length
[42.5, 45.0, 46.5] 160mm, [48.5, 50.0, 51.0] 165mm, [52.0, 52.5] 170mm, [54.0] 172.5mm, [56.0, 60.0] 175mm
Bottom Bracket
Italian
Cassette
SRAM Red XG-1290
Cassette Range
10–33t
Chain
SRAM Red
Brakeset
SRAM Red, 2-piston caliper
Brake Type

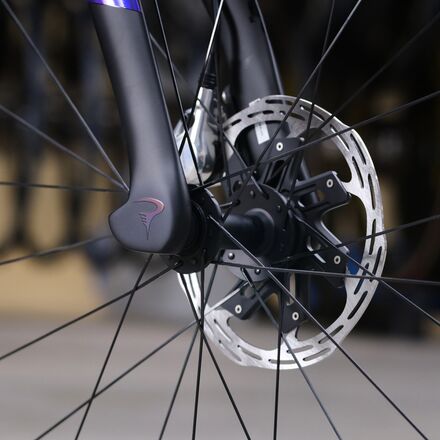

hydraulic disc, centerlock
Rotors
SRAM Paceline X, centerlock, 160mm

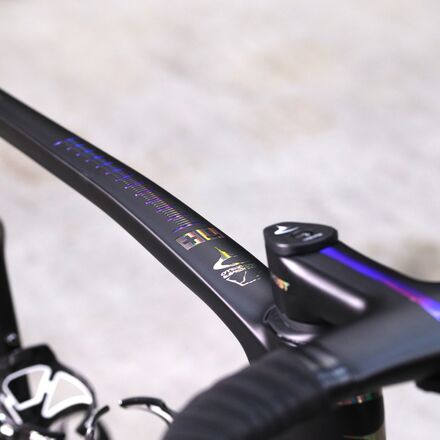

Handlebar

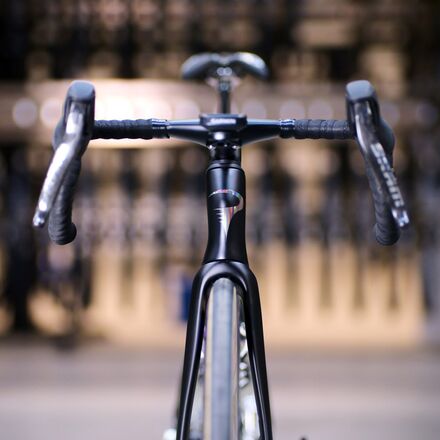

MOST Talon Ultra Fast integrated cockpit
Handlebar Drop
125mm
Bar Tape
MOST
Stem
MOST Talon Ultra Fast integrated

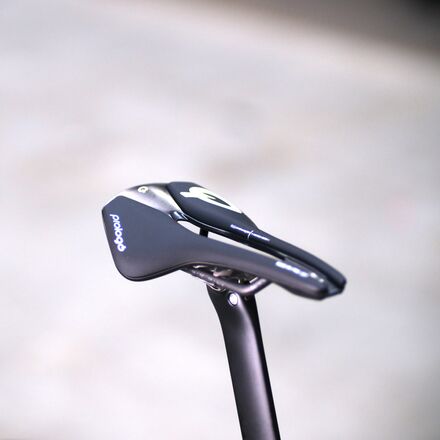

Saddle
MOST Lynx Ultrafast Superflow L Carbon, 145mm
Seatpost
Pinarello Aero seatpost, 3D-printed titanium clamp and bolts
Wheelset

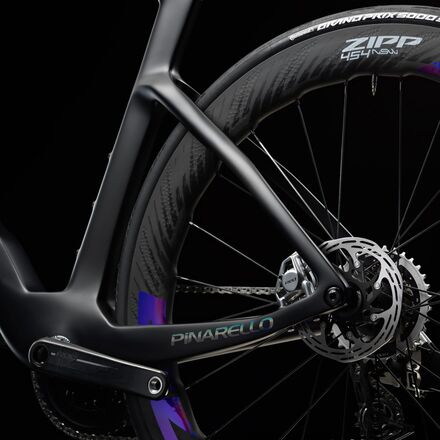

Zipp Carbon WH 454 NSW, custom Hologram Purple decals
Hubs
MOST Ultra Light Custom
Front Axle
12 x 100mm, M12 x 1.5mm
Rear Axle
12 x 142mm, M12 x 1.5mm
Tires
Continental Grand Prix 5000S TR
Tire Size
700 x 28c
Pedals
not included
Includes
Tissot Pinarello Special Edition watch, collector's packaging, Pinarello bottle cage, Pinarello Fly bottle 550ml
Activity
road cycling
