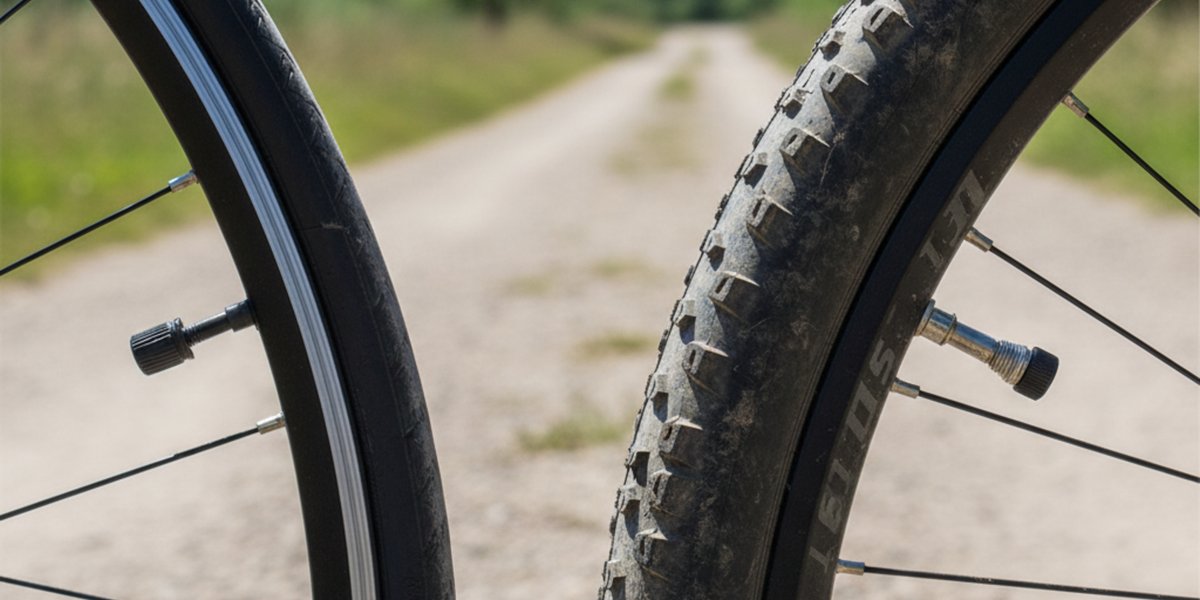

What do Presta and Schrader bike valves mean?
A concise explainer of Presta vs Schrader valves, when each fits, how adapters and removable tubeless cores affect compatibility, and what every rider should know before inflating.
Definition
Presta and Schrader are the two standard valve types on modern bicycle wheels. Presta (a slim, threaded valve with a locknut) is the road and tubeless favorite. Schrader (a stout, car-style valve) appears on some mountain, commuter, and lower-pressure wheels. The differences matter for rim-hole size, pump compatibility, adapters, and tubeless sealant behavior.
Why It Matters
Valve choice affects three ride-facing outcomes: the ability to seat tires and run tubeless sealant cleanly, the pump and inflator tools you can use, and whether you need adapters or valve extenders for deep rims. For riders chasing low rolling resistance or running tubeless, removable Presta valve cores are a small but crucial detail.
Quick routes to parts and tools you may need.
Bike Tires — Choose tires compatible with rims and valve types
Bike Tire & Tube Accessories — Tubes, valve cores, and adapters live here
Tubeless Road Bike Wheels — Rim specs and valve hole sizing matter for fit
CO2 Inflators — Many require removable cores or adapters
Mini Bike Pumps — Pump heads and compatibility for both valve types
How It Works
Think three mechanical differences: diameter, mounting, and core design.
Diameter & rim hole: Presta stems are slim (about 6 mm outer diameter). Schrader stems are wider (roughly 8 mm). Rims are drilled to match; a Presta hole will accept Presta directly. A Schrader hole accepts Schrader but can also accept a Presta with a larger drill.
Mounting: Presta valves thread into a small locknut you hand-tightens to seat the valve at the rim. Schrader valves are held by the rim hole and rely on a rubber grommet inside the tube or tubeless tape.
Valve cores: Both valve types can have removable cores. For tubeless setups, removable Presta cores let you add sealant quickly and allow high-flow inflation via CO2 or compressors.
Conceptual diagram (imagine): cross-section showing rim, rim tape/tubeless bead, valve stem, valve core. The diagram highlights rim hole diameter and where a removable core screws in.
Inline compatibility notes:
Most floor pumps accept both valves with a dual-head or reversible head. If your pump head is Schrader-only, use an adapter or a dedicated Presta head.
For tubeless, tubeless wheels usually use Presta valves with removable cores for sealant addition.
> Pro tip: If you plan to carry CO2, carry a spare removable Presta core and a small wrench. Some cartridges and inflators strip cores if not fully tightened.
Key Specs/Thresholds
Typical rim hole diameter: Presta ≈ 6 mm; Schrader ≈ 8 mm.
Common Presta valve stem lengths: 32 mm to 60+ mm for deep rims and extenders.
Adapter weight: Schrader-to-Presta screw-on adapters typically 7–12 g.
Valve core weight: brass Presta core ≈ 1.5–3 g; removable cores matter for tubeless sealant maintenance.
Pump torque: hand-tighten Presta locknut; do not overtighten past fingertip snugness. No torque wrench needed; excessive torque risks stripping the stem.
Valve thread: Presta stems thread into a small nut; extenders and caps use matching fine threads.
Common Misconceptions
"Schrader is stronger, so it’s better for tubeless." Not inherently. Strength is irrelevant; core removability and rim-sealing matter more.
"You can always use an adapter instead of changing the rim hole." Adapters work for inflation, but adapters add weight and can leak under tubeless pressures if poorly seated.
"All tubeless systems use removable cores." Many do, but not all. Check the wheel/valve spec before assuming.
"A Schrader valve will fit any pump." Only if the pump head accepts Schrader or you use an adapter.
When to Choose/Use
If you run road or gravel tubeless: choose Presta with a removable core. It’s the standard and simplifies sealant service.
If you have stock commuter wheels with Schrader: you can convert to Presta by drilling rims and installing Presta valves, but consult a shop first.
If you ride deep-section rims: select longer Presta stems or extenders (40–70 mm). Confirm stem length before buying tires or wheels.
If you carry CO2: use removable cores on Presta valves to get full-flow inflation; carry an adapter for Schrader-only inflators.
Sources
Park Tool (2024) — Valve types and pump compatibility guide.
Sheldon Brown (2010) — Classic reference on valve standards and history.
Schwalbe Knowledge (2022) — Valve choices, tubeless considerations, and rim compatibility.
Stan's NoTubes (2023) — Tubeless valves, removable cores, and sealant best practices.
Takeaways
Presta is slim and standard for road and tubeless; Schrader is wider and car-style.
Rim hole size (≈6 mm vs 8 mm) drives compatibility—don’t drill without checking.
Removable Presta cores are essential for tubeless sealant addition and CO2 inflation.
Adapters work for inflation but add weight and potential leak points—choose parts thoughtfully.
FAQs
Can I use a Schrader pump on a Presta valve?
Yes. Use a screw-on Schrader-to-Presta adapter or a pump head that switches between Presta and Schrader. Adapters add about 7–12 g. For seating tubeless tires, prefer a high-flow floor pump or compressor rather than a tiny adapter and mini pump.
Do tubeless systems require removable valve cores?
Not always, but removable cores are highly recommended. They let you add sealant quickly and allow high-flow inflation with CO2 or compressors. Carry a spare core and a core tool when you run tubeless.
