How to Replace a Bike Cassette: Lockring Tool, Chain Whip & Step-by-Step
Replace a worn cassette at the workbench to restore crisp shifting and extend drivetrain life. This how-to walks you through removing and installing a cassette using a chain whip and lockring tool — about 30–45 minutes at the bench.
Incorrect installation or adjustment of drivetrain or wheel components can cause loss of control and serious injury. If you are not confident performing this work, take your bike to a qualified mechanic. Have a clean workbench, good lighting and about 30–45 minutes set aside.
What this covers: removing the rear wheel, using a chain whip and lockring tool to remove a cassette, cleaning the freehub body, installing a cassette, and post-install validation.
Before You Start
Incorrect installation or adjustment of drivetrain or wheel components can cause loss of control and serious injury. If you are not confident performing this work, take your bike to a qualified mechanic. Have a clean workbench, good lighting and about 30–45 minutes set aside.
What this covers: removing the rear wheel, using a chain whip and lockring tool to remove a cassette, cleaning the freehub body, installing a cassette, and post-install validation.
Related Categories: No related categories available.
Tools & Supplies
Rear wheel removed from the bike
Chain whip
Cassette lockring tool (match spline type to cassette)
Adjustable wrench or 1/2" drive socket and breaker bar
Rag and degreaser
Grease or anti-seize
Soft-faced hammer or mallet (optional)
Torque wrench (recommended for final lockring torque) — (verify with your component's manual — values vary by manufacturer and material)
Gloves, eye protection
Steps
1) Remove the wheel
Shift to the smallest cog, release the rear brake (if needed), and remove the wheel from the frame. For thru-axles, remove the axle per manufacturer instructions. Lay the wheel on a clean rag with the cassette up.

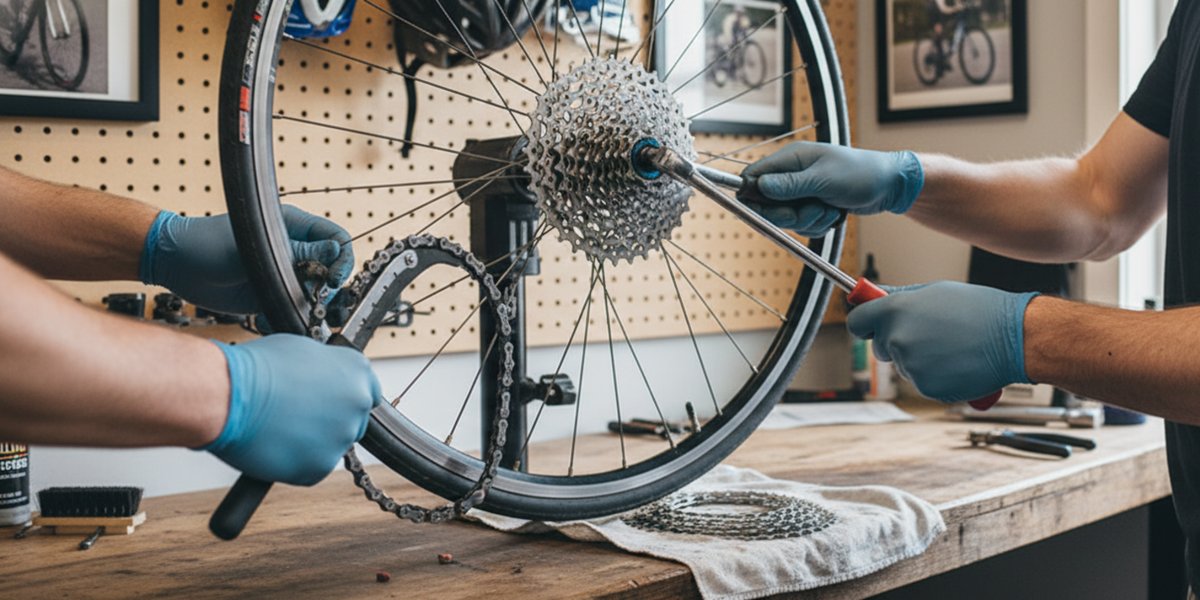

2) Fit the lockring tool and chain whip
Thread the lockring tool fully into the lockring. Position the chain whip so its teeth engage a large cog to prevent the cassette from turning.
3) Break the lockring free
Hold the chain whip to hold the cassette steady and use an adjustable wrench or a socket on the lockring tool to turn the lockring counterclockwise. If the lockring is very tight, apply steady, controlled force. If it resists beyond comfortable force, read Troubleshooting below before applying more torque.
4) Remove the cassette
Once the lockring is off, slide the cassette body off the freehub splines. If using a cassette with individual sprockets and spacers, keep the stack order and any spacer orientation for reassembly or reference.
5) Inspect and clean
Inspect the freehub splines and cassette for wear, gunk, or damage. Wipe with a rag and a little degreaser; allow to dry. Lightly grease the splines where recommended by the cassette/freehub manufacturer.
6) Install the cassette
Slide the cassette onto the freehub splines in the correct order; cassettes are usually keyed so they only fit one way. Thread the lockring by hand to avoid cross-threading.
7) Tighten the lockring to spec
Use a torque wrench or appropriate tool to tighten the lockring to the manufacturer's specified torque. Tighten progressively and recheck fit. (verify with your component's manual — values vary by manufacturer and material)
8) Reinstall the wheel and test
Reinstall the wheel into the frame, secure the axle or quick-release, reconnect the brake if applicable, and shift through the cassette while pedaling by hand to confirm smooth indexing.
Gearhead Tip: If you’re swapping cassettes to change range, confirm chain length and rear derailleur capacity. A bigger largest cog can require a longer chain or a B-screw adjustment.
Validation, Troubleshooting & When to Seek a Shop
Validation — What Good Looks Like
No lateral play between the cassette and freehub; cogs feel snug and sit flush.
Shifting across the cassette is crisp with no hesitations or skipping under a light pedal load.
No unusual noises from the hub area and rotor clears the caliper by expected tolerance.
Lockring is hand-tight and then set to the manufacturer's torque spec (verify with your component's manual — values vary by manufacturer and material).
Troubleshooting
Lockring won't turn: Ensure the chain whip is engaging a cog properly. Apply penetrating oil around the lockring threads and let it sit. If it still won't budge, take the wheel to a shop rather than applying excessive force that can damage splines.
Tool slips or rounds the lockring: Stop. If the lockring is rounded, use a correct-fit tool or take it to a shop. Using pliers or ill-fitting tools will damage the lockring and tool.
Cassette stuck on the freehub: Gently tap the cassette stack with a soft-faced mallet to break corrosion bonds. If it remains stuck, a shop with a vise and proper tools is the safer option.
New cassette hangs up on freehub: Confirm cogs or spacers are in the right order and orientation. Some cassettes have a spacer or directional piece; consult the cassette instructions.
When to Stop & Seek a Shop
You encounter seized components that don’t respond to moderate, controlled force.
Splines, lockring, or freehub show visible damage or rounding.
You lack the correct lockring tool or a torque wrench. For safety-critical tightening, a calibrated torque wrench is required.
Any wheel or hub service beyond cassette removal (bearing service, hub disassembly) — these are best left to a shop.
Post-work safety check (always perform before riding):
Ensure axle/quick-release is secure and torqued per frame/hub instructions.
Spin the wheel and check rotor clearance and hub bearings.
Test shifting by pedaling in a trainer or with the bike on a stand at low load.
Key Takeaways
Use a chain whip and correct lockring tool; avoid improvised tools that round lockrings.
Clean and inspect the freehub splines before installing a new cassette.
Always tighten the lockring to the manufacturer's torque spec (verify with your component's manual).
If a part is seized, rounded, or you lack the right tools, stop and consult a professional mechanic.
FAQs
How often should I replace my cassette?
Replace the cassette when you notice skipping under load, poor shifting, or when a new chain wears quickly through the cogs. Cassette life depends on chain maintenance, riding conditions, and chain replacement intervals; inspect wear with a chain checker and replace the cassette when cogs show hooked teeth or excessive wear.
Can I reuse an old cassette with a new chain?
You can if the cassette teeth show minimal wear and the new chain meshes cleanly. Often a worn cassette will accelerate new chain wear and produce noisy or skipping shifts. If you change chain and cassette together, drivetrain life and shifting are optimal.
Do I need a special lockring tool for every cassette brand?
Many modern cassettes from Shimano and SRAM share similar spline patterns and use compatible lockring tools, but some aftermarket or older cassettes vary. Always match the tool spline type to your cassette and consult manufacturer documentation.
Sources
Park Tool — cassette removal guidance and tool recommendations.
Shimano Technical Documents — cassette and freehub compatibility notes (consult specific model pages).
SRAM Technical Support — lockring tools and spline types.
