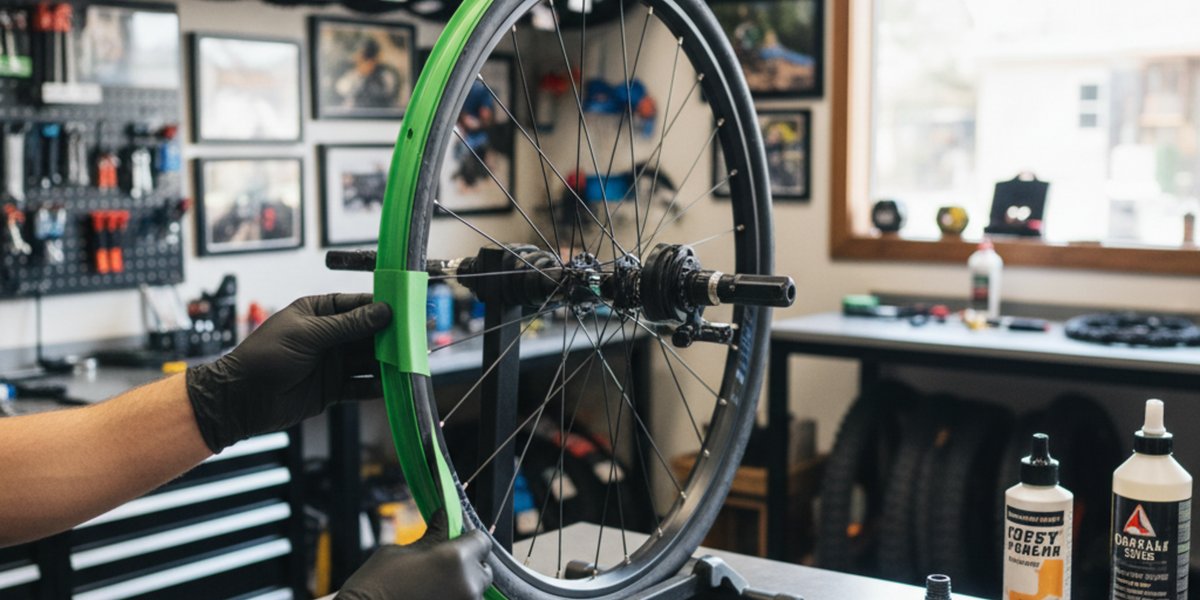

How to Install a Tubeless Valve — Leaks & Tape Interface Checklist

Incorrect installation or adjustment of wheels, rims, or valve components can cause loss of air, sudden deflation, and serious injury. If you are not confident performing this procedure, take your wheel to a qualified mechanic.

Why this matters: a leaking valve or a poorly seated tape interface is the most common cause of a tubeless system that won't hold air. Get the valve and tape right and the rest — bead seating, sealant distribution — becomes routine.

About 20–40 minutes at the bench.

Before You Start

Prereqs: clean, damage-free rim bed and rim hole; tubeless-compatible rim tape or rim strip; compatible valve(s) and sealant.

Time: plan 20–40 minutes per wheel if you’re methodical.

Safety quick-check: inspect the rim for cracks, dents, or corrosion. If the rim or spoke holes look compromised, stop and see a shop.

Related Categories

Tools & Supplies

Valve stems (tubeless Presta or appropriate type for your rim)

Tubeless rim tape or pre-cut rim strip

Valve core tool

Tire lever(s) and rim protector

Floor pump with a high-volume chamber or a compressor/air can (for bead seating)

Sealant and a syringe (if you plan to add through the valve)

Clean rag and isopropyl alcohol

Scissors or a razor knife for trimming tape

Marker

Steps

1) Remove the old valve and inspect - Deflate and unseat the tire bead. Remove the valve core and pull the old valve stem out. Clean the rim bed, removing old sealant residue with isopropyl alcohol.

2) Inspect rim tape and rim hole - Check that the rim tape fully covers all spoke holes and lies flat in the rim well. Any wrinkles, gaps, or exposed spoke holes are immediate leak paths.

3) Apply or replace rim tape - If you’re replacing tape, start opposite the valve hole and lay tidy, slightly overlapping wraps until you return to the start. For pre-cut strips, center them over the rim well. - Smooth the tape down and press into the spoke hole area so there are no bubbles.

4) Mark and cut the valve hole - From inside the rim, mark the tape where the valve will pass. - Use a sharp razor or small hole punch to cut a neat hole slightly smaller than the valve stem base so the tape forms a tight seal around the stem when it’s inserted.

5) Install the valve stem - Insert the valve stem from the inside of the rim so the rubber base seats flush against the tape on the inside of the rim. Thread the valve nut on the outside and hand-tighten until snug; avoid overtightening.

6) Reinstall valve core (or add sealant first) - If you plan to add sealant through the valve, remove the core now and use a syringe to inject the recommended volume, then reinstall the core. Otherwise, reinstall the core and add sealant via the tire or after seating.

7) Mount the tire and seat the bead - Mount the tire, add a small amount of sealant if you didn’t inject through the valve, then quickly seat the bead using a high-volume pump, compressor, or a good floor pump. - Spin the wheel and compress or tap the tire to help distribute sealant and force the bead into place.

8) Check the valve base and tape interface - With the tire pressurized to a moderate pressure, check the valve base and tape for bubbles or wet sealant. A slow leak at the valve usually indicates a poor tape cutout, a torn tape edge, or a valve not fully seated.

Gearhead Tip: Use a valve core tool to remove/install the core quickly during troubleshooting. If you add sealant through the valve, let the tire sit horizontally for a few minutes before reinstalling the core so sealant can pool at the valve seat.

Validation — What Good Looks Like

No visible bubbling at the valve base or around spoke holes after seating and 10–20 minutes of observation.

Valve stem sits straight (not canted) and the rubber base is flush with the inside tape surface.

Minimal air loss over 24 hours (some new setups will lose a few PSI as the bead fully seats and sealant distributes).

Tire bead holds at a reasonable ride pressure without needing an occasional pump to stay inflated.

Troubleshooting: common valve & tape leaks

  • Symptom: slow leak at the valve base - Fixes: remove the valve, inspect the tape cutout (make it smaller if too large), ensure the tape isn’t torn, reseat the valve stem and hand-tighten the nut. If the valve rubber seal is damaged, replace the valve.

  • Symptom: air hisses where tape overlaps or at spoke holes - Fixes: strip the tape and reapply carefully so overlaps are smooth and cover every spoke hole. Consider using a continuous tubeless-specific tape rather than segmented tape.

  • Symptom: valve pulls through or the base deforms when tightening - Fixes: don’t overtighten the external nut. If the hole is oversized or the tape is thin, replace with thicker tape or a rim strip sized for your rim.

  • Symptom: persistent leak despite correct tape and valve installation - Fixes: check for a cracked rim bed, corrosion, or damage around the valve hole. Also inspect the valve nut and threads for cross-threading or burrs.

When to Stop & Seek a Shop

Any visible rim crack, dent, or corrosion around the valve hole.

Ovalized or severely enlarged valve hole.

Persistent, unfixable leaks after re-taping and replacing the valve.

If you’re unsure about rim integrity, wheel true, or need rim bed repair — this is beyond routine home maintenance; get professional help.

Before you ride: do a low-speed rollout in a safe area to confirm the wheel holds pressure and the tire feels normal.

Sources

ETRTO tubeless fitment guidance and rim/tire interface recommendations

Park Tool tubeless tire guide

Manufacturer tubeless installation instructions (consult your rim and valve maker for exact procedures and limits)

Takeaways

  • A neat, correctly sized hole in properly applied tubeless tape is the most common fix for valve-base leaks.

  • Hand-tighten the valve nut; don't shear the tape or ovalize the hole with over-torquing.

  • If the rim bed or valve hole looks damaged, stop and take the wheel to a shop.

  • Use a valve core tool and add sealant through the valve to speed troubleshooting and reduce mess.

FAQs

Can I add sealant through the valve core?

Yes. Remove the valve core with a valve core tool, inject sealant through a syringe, and reinstall the core. Many riders find this cleaner than breaking the bead. If you inject through the valve, allow sealant a minute to pool before reinstalling the core.

How tight should the valve nut be?

Tighten the valve nut until the valve base sits flush and the stem doesn’t move, using hand force and a small wrench only if needed. Avoid overtightening. Consult your valve manufacturer's instructions for any torque guidance (verify with your component's manual — values vary).

Why does my valve still leak after replacing tape?

Common causes: an oversized or ragged valve hole, tape that didn’t fully cover spoke holes, a damaged valve rubber, or rim damage. Re-cut a smaller hole in the tape, reseat the valve, and if leaks persist inspect the rim for structural issues.
