How To Index Rear Shifting with the Barrel Adjuster

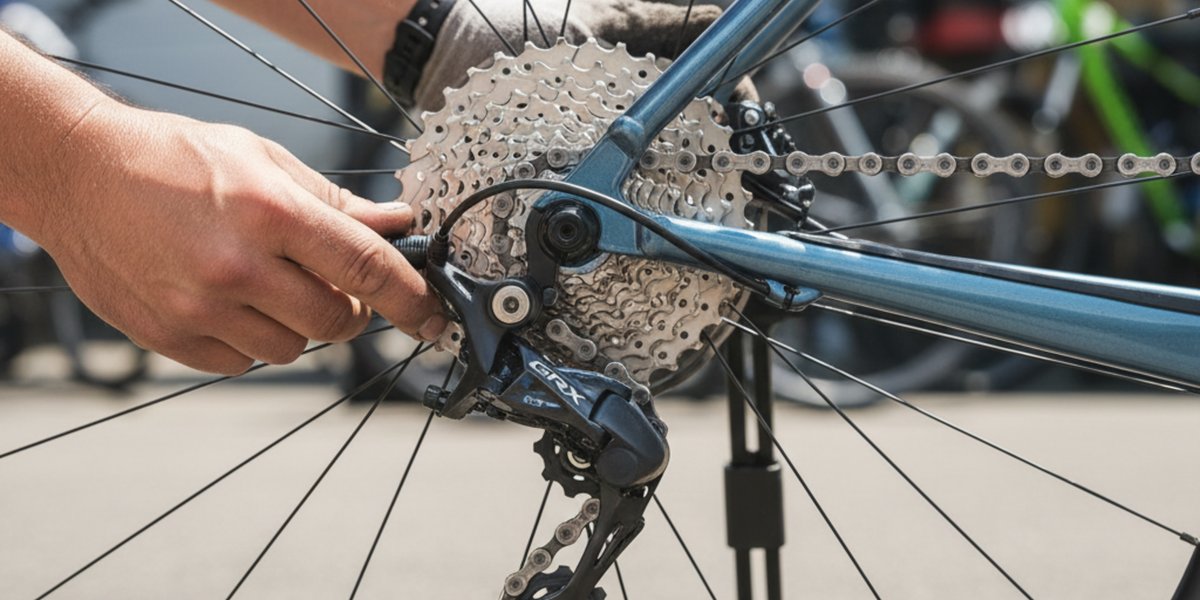

How to index rear shifting with the barrel adjuster (step-by-step)

A compact, no-fluff walkthrough to get crisp indexed rear shifts using the barrel adjuster. Expect about 20–30 minutes at the bench and a quick road check.

Why this matters

Precise rear shifting saves watts, reduces wear, and keeps you on the rivet when the group surges. The barrel adjuster is the simplest, most effective dial for indexing a cable-actuated rear derailleur. This guide gets you from skipped shifts to dependable indexing in about 20–30 minutes.

Before You Start

Warning: Incorrect derailleur adjustment can cause chain drop, stuck gears, or loss of control. If you are not comfortable performing these steps, take the bike to a qualified mechanic.

Prerequisites

Bike with cable-actuated rear derailleur (mechanical Shimano/SRAM or similar). Electronic shifting systems don't use a barrel adjuster for indexing.
Drivetrain in reasonable condition: clean chain, no badly worn cassette or chain, cable housing intact.

Related Categories

(No internal category links available in this post.)

Tools & Supplies

Allen keys (3, 4, or 5 mm depending on clamp bolts)
Clean rag and mild degreaser
Cable cutters (if you plan to replace cable)
Needle-nose pliers
Optional: light lubricant

Gearhead Tip: If your cable is visibly frayed, replace it before indexing — fine strands change tension unpredictably.

Steps

Prepare the bike
Shift to the small (outer) chainring and the smallest rear cog so the derailleur is in its relaxed position. Stand the bike in a workstand or flip it so the drivetrain is accessible.
Check limit screws first
Make sure the high-limit screw prevents the chain from dropping off the smallest cog and that the low-limit screw prevents overshifting into the spokes. If limits are wrong, correct those before indexing (each brand documents procedure in their tech docs).
Inspect cable and housing
Look for kinks, frays, corrosion, or compressed housing ends. Smooth cable movement is essential. Replace cable/housing if movement is stiff.
Set baseline barrel position
Back the barrel adjuster all the way in (clockwise) until it seats lightly, then turn it out (counter-clockwise) 2–3 full turns. This gives you room to fine-tune.
Tune while pedaling
With the bike supported and pedals turning slowly, shift up one gear at a time (small to larger cogs). If the chain hesitates to climb to the next cog, open the barrel (turn counter-clockwise) in quarter-turn increments until it climbs cleanly.
Fine-tune high- and low-end take-up
After the middle cogs are smooth, shift to the largest cog. If it overshoots into the spokes, use the low-limit screw to correct. Shift back to the smallest cog and ensure it doesn’t overshoot into the frame; adjust the high-limit screw as needed.
Check under load
Take the bike off the stand and ride a short loop that includes some hard pedaling in each gear. If the chain hesitates only under load, add small amounts of cable tension via the barrel adjuster while riding (turn one-quarter to one-half turn), or stop and fine-tune at the bench.
Lock it in
When indexing is stable, trim excess cable if you opened the pinch bolt (leave a small tail and a zip tie or cable end cap). Re-check quick releases and bolt tightness against manufacturer recommendations.

Validation / What Good Looks Like

Each indexed shift moves the chain cleanly to the next cog with one click and minimal chain noise.
No hesitation when accelerating under load; no ghost shifting at rest.
Limit screws prevent overshoot at the smallest and largest cogs.
Cable runs smoothly with no visible fray or binding.

Before you ride hard: check shifting across the cassette at low speed in a safe area.

Troubleshooting

Problem: Chain hesitates moving to larger cogs.
Fix: Increase cable tension by turning barrel adjuster out (counter-clockwise) in 1/4-turn increments. If you run out of barrel travel, re-seat the cable at the pinch bolt with slightly more tension.
Problem: Chain overshoots to larger cogs or into spokes.
Fix: Reduce cable tension via the barrel (clockwise) or tighten the low-limit screw very slightly.
Problem: Skipping under power but OK at the stand.
Fix: Check for worn chain or cassette; replace if suspect. Ensure cable is seated and housings are not compressing under load.
Problem: No adjustment seems to help.
Fix: Inspect derailleur hanger alignment — a bent hanger prevents accurate indexing. Hanger alignment requires a shop tool or shop visit.

When to Stop & Seek a Shop

You discover a bent derailleur hanger or damaged dropout.
Cable or housing needs replacement and you're not comfortable doing it.
Shifting problems persist after basic indexing and the cassette/chain may be worn.
You need a precision hanger alignment — this requires a dedicated tool.

Sources

Park Tool — general rear derailleur adjustment guides and troubleshooting.
Shimano & SRAM technical/service documents — for model-specific limit/installation procedures.

Safety note: Always consult your derailleur and frame manufacturer's documentation for model-specific procedures and torque specs. If a step requires a torque value, use a calibrated torque wrench and follow the manual.

Takeaways

The barrel adjuster is your primary tool for fine-tuning cable tension and indexed shifting.
Start with limits set correctly and a healthy cable/housing before you index.
Adjust in small increments (quarter-turns) while pedaling; validate under load.
Seek a shop for bent hangers, persistent problems, or if you're not confident.

FAQs

Which way do I turn the barrel adjuster to increase tension?

Turn the barrel counter-clockwise (unscrew it) to add cable tension, which moves the derailleur toward larger cogs. Turn it clockwise to reduce tension.

Can I index shifting while riding?

Yes — small adjustments can be made on the road while lightly pedaling. Make quarter- or half-turn changes and test under load. If you need large changes or a new cable, do that at the bench or at a shop.

How do I know if the hanger is bent?

Symptoms include inconsistent indexing across the cassette and shifts that never sit perfectly. A bent hanger is best checked with a hanger alignment tool at a shop.
