Trail 429 Pro XT/XTR Enduro Carbon Wheel Mountain Bike

Be the first to review
Color:Pacific Blue (Float X)


GeometryFind your size


Why We Like The Trail 429 Pro XT/XTR Enduro Carbon Wheel Mountain Bike

Made to fly up and down the mountain the Pivot Trail 429 Pro XT/XTR Enduro Carbon Wheel Mountain Bike is our fast-legged fun-loving machine. Modeled after its world-cup winning and cross-country driven Mach 4 SL, the frame redesign drops 300g off a size large frame compared to the previous generation of Trail 429. We don’t want to get caught in a trap of "climbs like a goat, descends like a demon" cliches, but with the new 429, it's hard to describe the feeling in a simpler way.

Geometry is covered with the new 429, and the longer, slacker, and steeper treatment we see on bikes nowadays hits home with Pivot’s new ride. Already over a degree slacker than its predecessor, the Trail 429 can be slacked out even further with the integrated flip-chip. The seat-tube is also half a degree steeper than the previous model, and for us out here in the mountains or down in the desert, we couldn’t be more thankful. The steep seat angle allows us to pedal hard up steep gradients without getting out of the saddle, and the DW link works overtime to make sure every watt is transferred onto the dirt.

New to the 429 is a vertical DW link, and with the FOX Live Valve-ready frame this bike is dedicated to the ascents as much as the descents. Even with 120mm travel rear and 140mm front suspension set-up, this bike is efficient. We’re half tempted to throw some XC-specific tires on here and snag some up and downhill KOMS on our local cross-country loops. And we can certainly do that, but with this bike being equipped with Reynolds carbon wheels and knobby 2.4in Maxxis tires, it begs to smash down descents at wide-open speeds.

Pivot’s new frame technology sticks with their esteemed hollow-carbon layup, but like the new Switchblade, now offers a unique layup for each frame size. For instance, a size small frame is no longer just a carbon copy of a size extra-large, as the tubes use less material to compensate for the added stiffness of naturally shorter tube lengths. Likewise, on an XL frame with longer tube lengths, the frame is beefed up to maintain an appropriate level of stiffness. This proprietary tech means our smaller friends don’t complain about a stiff and harsh ride, and our larger friends don’t complain about too much frame flex or the bike feeling ‘noodly’.

*Due to unprecedented demand in the global supply chain and the bike industry over the last 18 months, material weight and exact components are subject to change. We are working diligently to keep tech specs updated, and any adjustments will be minor. If you have any questions, reach out to a Gearhead by chatting online or calling 1-888-276-7130.


  • Pivot's short traveled but aggressive rig for fun riding
  • DW-link suspension offers phenomenal pedaling characteristics
  • 29in wheels offer high rolling efficiency
  • Flip-chip can swap the bike between high and low settings
  • Super-boost rear axle for added stiffness

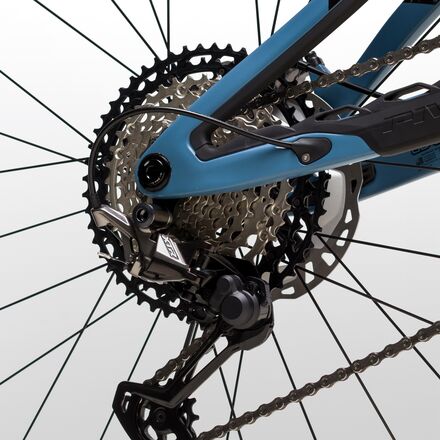

  • Shimano XT/XTR shifting delivers smooth hyperglide performance
  • Fox Factory suspension for competent squish in rough terrain
  • All frame sizes can fit a full-size water bottle
  • Item #PIV1WWP
Frame Material
Rear Shock
Fox Factory Float X
Rear Travel
Fox Factory 36 GRIP2
Front Travel
Pivot Precision Sealed Cartridge
Shimano XT M8120
Rear Derailleur
Shimano XTR M9100
RaceFace Aeffect R
Chainring Sizes
Crank Arm Length
[x-small, small] 170mm, [medium, large, x-large] 175mm
Bottom Bracket
Shimano 24mm, BB92
Shimano XT M8100
Cassette Range
Shimano CN-M8100 12-speed
Shimano XT M8120

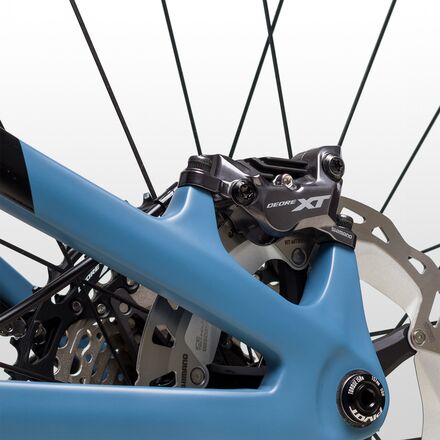

Brake Type
4-piston hydraulic
[front, rear] Shimano XT Centerlock
Phoenix Team Low Rise Carbon
Handlebar Width
Phoenix Factory Lock-On
Phoenix Team Enduro/Trail
Stem Length
[x-small] 35mm, [small] 45mm, [medium, large, x-large] 55mm
Phoenix WTB Volt Pro
Fox Transfer Factory Series
Seatpost Travel
[x-small, small] 125mm, [medium] 150mm, [large] 175mm, [x-large] 200mm
Reynolds Blacklabel 309/289
Industry Nine Hydra
Front Axle
15mm x 110mm
Rear Axle
12mm x 157mm
Tire Clearance
29in x 2.6in
[front, rear] Maxxis Dissector TR, 3C, EXO, maxxterra
Tire Size
[front, rear] 29in x 2.4in WT
not included
Claimed Weight
[medium, aluminum wheels] 26.5lbs
mountain biking, trail
Manufacturer Warranty
[frame] 10 years
