Pivot
Trail 429 Pro XT/XTR Carbon Wheel Mountain Bike

Be the first to review
$8,849.00
Color:Metallic Silver

Size:

GeometryFind your size

Quantity


Why We Like The Trail 429 Pro XT/XTR Carbon Wheel Mountain Bike

Ripping local singletrack lines has never been more fun than when we're aboard the Pivot Trail 429 Pro XT/XTR Carbon Wheel Mountain Bike. This fun rocket of a bike uses DW-link suspension for a bottomless feel on the descents and a responsive ride on the climbs. With the Trail 429 getting lower, longer, and slacker geometry treatment we're all aboard on getting a leg over and sending it through new shoots. This version of the Trail 429 gets lightweight carbon hoops from Reynolds included so we can confidently rip it up with our cross-country-oriented friends.


Geometry on this version of the 429 is dialed for a competent trail bike that relishes the descents as much as it pushes us up the climbs. A flip-chip in the rear lets us choose between 'slack' and 'slacker', so naturally, we're going for the slacker option. In this setting, the headtube drops to 66° all while keeping a relatively steep seat tube angle of 75°. Combined with a middling wheelbase of 1188mm(size M) we're having fun no matter what direction the trail goes or how long the next descent is.


Helping us keep the fun between the legs and a smile on our faces is the DW-link suspension paired with supple Fox suspension. DW-linkage makes for an incredibly efficient pedaler, eliminating pedal input from affecting our suspension. Fox Factory suspension is top of the class and the Kashima coating promises to help our squish components ride better for longer. Drivetrain on the 429 is a mix of Shimano XT and XTR components, this group brings a ton of range and incredible shifting smoothness.


Finishing off the Pivot is the modern, lightweight, and durable wheels provided by Reynolds carbon. These wheels tip the scales at just under 1500g which makes even some of our cross-country friends blush. These wheels are built with differing internal widths, allowing for a bigger contact patch in the front and better rolling resistance in the rear. Specced with carbon bars and lightweight components where it counts we can't wait to get our legs over this bike. The new Trail 429's frame alone is 300g lighter than the previous model and allows for a full-size water bottle, making it the bike we choose for just about any ride on dirt.


*Due to unprecedented demand in the global supply chain and the bike industry over the last 18 months, material weight and exact components are subject to change. We are working diligently to keep tech specs updated, and any adjustments will be minor. If you have any questions, reach out to a Gearhead by chatting online or calling 1-888-276-7130.


Details

  • Pivot's entry into a fast and zippy trail bike
  • Carbon trail bike with carbon wheels to match
  • 29in wheels with low approach angle roll over any obstacle
  • Flip-chip allows for adjustment
  • Shimano drivetrain uses Hollowglide tech to shift smooth under load
  • Live Valve ready frame offers a next-level suspension upgrade
  • New frame design drops 300g and fits a full-sized water bottle
  • Item #PIV1WWO
Frame Material
carbon
Suspension
dw-link
Rear Shock
Fox Factory DPS
Rear Travel
120mm
Fork
Fox Factory 34 FIT4
Front Travel
130mm
Headset
Pivot Precision Sealed Cartridge
Shifters
Shimano XT M8100
Rear Derailleur
Shimano XTR M9100
ISCG Tabs
ISCG-05

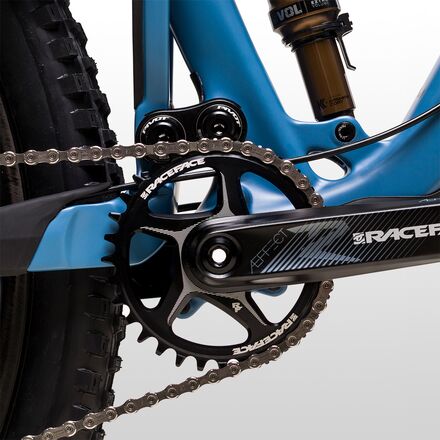

Crankset
RaceFace Aeffect R
Chainring Sizes
32t
Crank Arm Length
[x-small, small] 170mm, [medium, large, x-large] 175mm
Bottom Bracket
Shimano XT pressfit
Cassette
Shimano XT M8100
Cassette Range
10-51t
Chain
Shimano CN-M8100
Brakeset
Shimano XT M8120
Brake Type
4-piston hydraulic
Rotors
[front, rear] Shimano XT Centerlock 180mm
Handlebar
Phoenix Team Low Rise Carbon
Handlebar Width
780mm
Grips
Phoenix Factory Lock-On
Stem
Phoenix Team Enduro/Trail
Stem Length
[x-small] 35mm, [small] 45mm, [medium, large, x-large] 55mm
Saddle
Phoenix WTB Volt Pro
Seatpost
Fox Transfer Factory
Seatpost Travel
[x-small, small] 125mm, [medium] 150mm, [large] 175mm, [x-large] 200mm
Wheelset
Reynolds Blacklabel 309/289
Hubs
Industry Nine Hydra
Front Axle
15mm x 100mm
Rear Axle
12mm x 157mm
Tire Clearance
29in x 2.6in
Tires
[front, rear] Maxxis Dissector WT, TR, 3C, EXO, MAXXTERRA
Tire Size
29in x 2.4in
Pedals
not included
Claimed Weight
[x-large] 29lb 8oz (13.3kg)
Activity
mountain biking, enduro, trail, cross-country
Manufacturer Warranty
[frame] 10 years
