Pinarello FP Due/SRAM Rival Complete Bike - 2012

Out of Stock

Item # PIN0091

2012 This model is no longer in stock.

Item # PIN0091


Today is your day.

There are three flavors of the Pinarello FP Due Complete Bike. This is the SRAM-infused version; Rival to be specific. The FP Due is smart bike that results in riding joy. After your purchase, you'll congratulate yourself on the smart thinking. But when you get on the bike, you'll experience the joy of having a great ride under your legs.

The first thing to discuss with Pinarello's bikes is the frame, and the complete set of molded tubes is smart on its own. It's a demonstration of how Pinarello forges ahead with the cutting edge and then introduces the breakthroughs to the rest of their line. In naming conventions, this is the successor to the older FP2. But in terms of performance, this owes not only to the 2, but also to the now-absent Pinarello Prince. The frame is molded from plies of 24HM12K carbon-fiber. It's a 24-ton high-modulus cloth with the 12K finish wrap and all, but unlike the older FP2 and closer to the Prince, the Due is asymmetric in the stays and the fork. These asymmetries better fight the single-sided torque of driving the bike from the right side. Both the stays and the fork employ Pinarello's Onda design, aka waves, to add comfort to the ride. The steerer tube is also tapered with a more-dramatic flare for greater lateral stiffness, starting at 1-1/8" at the upper bearing and expanding to 1.5" at the lower. So you get comfort where you need it and stiffness where it helps with the ride and steering stability.

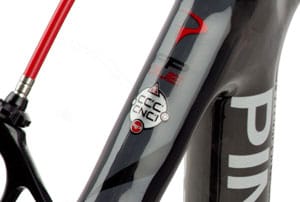

Pinarello FP Due/SRAM Rival Complete Bike DetailThe geometry is racy without being a backbreaker. You'll see a slightly relaxed seat tube angle and slightly taller head tube relative to Pinarello's ProTour-level Dogma2. Pro racing bikes aren't always the most comfortable, and those of you who want a bike that's a little more so will find this geometry perfect.

This version of the Due is built up with a SRAM Rival drivetrain and a selection of MOst components. Rival has all the technology of SRAM's top-shelf Red group, but at a much better price. You'll get Rival DoubleTap levers, crank, derailleurs, and cassette. Pinarello uses their MOst components to fill in the rest -- B-Max Force brakes, Jaguar XA anatomic bars, Tiger Au Painted stem, Jaguar XA seat post, and Ocelot saddle. The MOst components are finished to complement the frame colors, adding a nice custom touch to the bike. The wheels are MOst Wildcat; they're produced by Campagnolo for MOst and employ their 2 to 1 spoke groupings in back to make an incredibly strong 27-spoke rear wheel and a balanced 24-spoke front with 24mm deep rims. Cranks, stem, and bars are sized according to the frame. The cranks are compact with 50/34 rings and the cassette is a wide-range 12-27.

The Pinarello FP Due/Rival Complete Bike comes in Black-on-black, Red, and White/black/silver. There are seven sizes available from 44 to 59cm.

  • SRAM Rival shifters and drivetrain are more than capable of taking on season after season of dropping your buddies
  • Most Wildcat wheels are stiff and strong enough for contention, without feeling like you're dragging an anchor
  • Compact crankset and gearing give you more big-ring versatility, letting you save the little ring for those huge climbs
  • MOST seatpost, saddle, and cockpit ensure all-around comfort and perfectly-coordinated Italian panache

Tech Specs

Frame Material:
24HM12K carbon fiber
Dropout Type:
Fork Material:
carbon fiber
MOst Wildcat
Front Derailleur:
SRAM Rival
Front Derailleur Mount:
Rear Derailleur:
SRAM Rival
Cage Length:
SRAM Rival
SRAM Rival
Chain Rings:
50 / 34 T SRAM PowerGlide
Crank Arm Length:
[53cm] 172.5 mm
Bottom Bracket:
MOst Croxover
1.125 - 1.5 in Pinarello
Brake Calipers:
MOst B-Maxforce
MOst Jaguar XA aluminum
Handlebar Width:
[53cm] 42 cm
Bar Tape:
white cork
Most Tiger alloy
Stem Length:
[53cm] 120 mm
11 - 25 T SRAM PG-1070
MOst Ewiva A.F.
Tire Size:
700 c x 23 mm
MOst carbon fiber
Seatpost Diameter:
31.6 mm
Seatpost Length:
350 mm
Seat Collar:
alloy clamp
MOst Ocelot
internal top tube cable routing
Claimed Weight:
1400 g
Measured Effective Top-Tube Length:
[53cm] 54 cm
Recommended Use:
training, racing, graduating cat 5
Manufacturer Warranty:
3 years on frame

Geometry chart


Geometry Chart


FP Due

Seat Tube


Effective Top Tube






Set Back


Head Tube


Head Tube Angle


Seat Tube Angle


Bottom Bracket Drop




44 46.0cm 50.5cm 51.1cm 35.5cm 11.8cm 12.0cm 70.2 74.4 6.7cm 40.6cm
47 49.0cm 52.8cm 52.3cm 37.4cm 12.95cm 12.5cm 71.0 74.0 7.2cm 40.6cm
51.5 53.0cm 53.7cm 53.1cm 37.8cm 14.5cm 13.1cm 71.7 73.5 7.2cm 40.6cm
53 55.0cm 55.0cm 55.6cm 38.3cm 15.2cm 15.3cm 72.7 73.3 7.2cm 40.6cm
55 57.0cm 56.0cm 57.0cm 38.5cm 16.1cm 16.8cm 72.8 73.0 7.2cm 40.8cm
57 59.0cm 57.5cm 58.2cm 39.2cm 17.1cm 18.5cm 73.0 72.5 6.7cm 41.0cm
59 61.0cm 58.5cm 60.4cm 38.9cm 18.2cm 20.8cm 73.0 72.0 6.7cm 41.0cm

Pinarello FP Due Geometry Chart

What community has to say

What do you think of the

Pinarello FP Due/SRAM Rival Complete Bike - 2012

? Share a...

Write a review

No file chosen

Rather attach a photo from another website?

Rather attach a photo from your computer?

  • Product review:
  • Share a video
  • Share a photo

How familiar are you with the product?(Optional)

Invalid filetype.


Here's what others have to say...

Unanswered Question

What size of bike would you recommend if...

Posted on

What size of bike would you recommend if I am 5' 3" and inseam of 30"
Would the Pinerallo FP be the best choice??

Im 5'10" with a 33" inseam. What size...

Posted on

Im 5'10" with a 33" inseam. What size should I get?

Responded on

Hey Leon,

57cm should be perfect.

Responded on

Should be a 55
cm for sure. Give us a call if you'd like more help with the sizing or the order. Cheers - Adam

Unanswered Question

I'm stuck between the FP Due Rival and the...

Posted on

I'm stuck between the FP Due Rival and the Cannondale SuperSix also with a Rival kit. Any thoughts on strengths and weaknesses of either ride?
