FOX Racing Shox

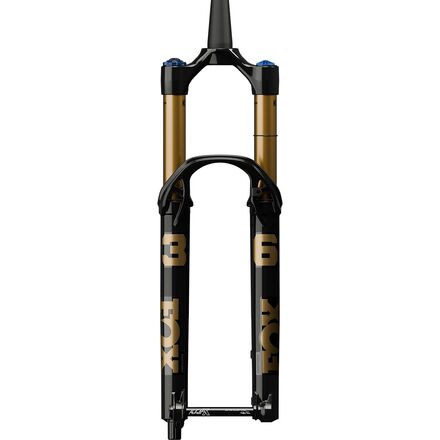

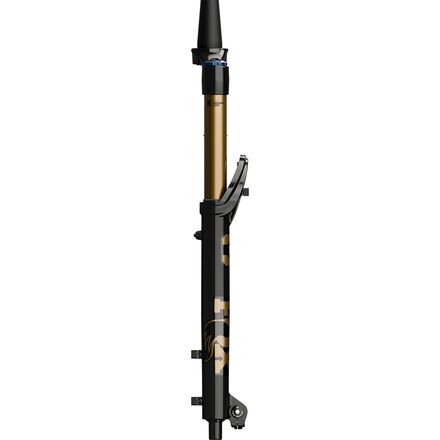

36 Float 27.5in Factory Grip X Fork

Be the first to review
$1,149.00

Style & Size:

Quantity


Why We Like The Fox 36 Float 27.5in Factory Grip X Fork

With all-mountain performance in a sleek, highly-tunable package, the Fox 36 is one of the most popular and capable forks seen on the trails to date. Kashima-coated 36mm stanchions are at home pounding down chunky descents, supplying us with buttery-smooth performance all over the mountain. Magnesium lowers provide ample durability and weight savings, while the recently revised lower leg arch and crown ensure the lightest possible weight without sacrificing stiffness or durability. This version of the Fox 36 is fitted with Fox's new GripX damper, which is 120 grams lighter than its new big sibling, the GripX2, and is more focused on balanced performance all over the mountain. The GripX features many of the same adjustments as the old model Grip2 damper, giving us high and low-speed compression and a singular rebound adjustment. The GripX is equipped with a firm compression setting at the end of the high-speed compression range so we can firm up the fork for more efficient climbing. In addition, the rebound is now limited to a single rebound adjustment, with the dual rebound adjustment reserved for the X2. This new setup brings us much of the same capability with a simpler overall function and more climbing ability.


Details

  • Trail/enduro fork with highly tunable damper
  • Kashima-coated 36mm stanchions for buttery-smooth performance
  • GripX is around 100 grams lighter than Grip2 but has many of the same adjustments
  • FLOAT EVOL air spring for unparalleled small bump sensitivity
  • Magnesium lowers are stiff, durable, and lightweight
  • Item #FRSC0A0
Travel
160mm
Stanchion Material
aluminum, Kashima coating
Lower Material
magnesium
Crown Material
aluminum
Wheel Size
27.5in
Steer Tube Diameter
1 1/8in - 1 1/2in
Stanchion Diameter
36mm
Rake
44mm
Spring Type
air, FLOAT EVOL
Damper
GripX
Adjustability
[low-speed compression] 16 clicks, [high-speed compression] 15 clicks, with firm setting [rebound] 17 clicks
Lockout
firm
Axle
15 x 110mm Boost
Brake Compatibility
Post Mount, disc
Rotor Compatibility
[min] 180mm direct, [max] 230mm
Activity
trail, enduro
